GARMIN

GTN 650Xi GPS/NAV/COMM/MFD

Part No: 010-01999-05

Installation starting at $14,500. Call for a quote today!

Call for price

Shipping calculated at checkout.
DESCRIPTION

Garmin GTN 650Xi for Certified Aircraft

GPS/NAV/COMM/MFD

    • Visualize your entire flight plan, including holds and approaches on a 4.9” touch display.
    • Faster is better. High-speed processors cut boot-up time by 50% over earlier GTN models.
    • Fly the approaches you want — from visual glidepaths to LPV, RNAV, ILS and more.
    • It’s interface-friendly with a wide range of existing avionics, autopilots and flight displays.
    • Wirelessly load flight plans and database updates with an optional Connext® link
    • Upgrade? New GTN Xi series offers easy slide-in upgrade for existing GTN avionics.

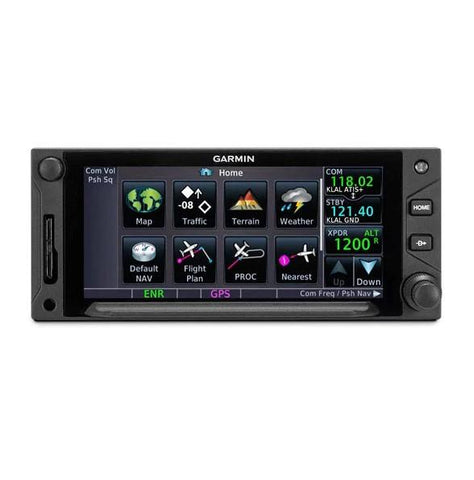

    Do-It-All Touchscreen

    Intuitive touchscreen interface provides quick access to navigation, radio tuning, multifunction display features and more.

    Lightning-Fast Response

    Powerful dual-core processors boost the GTN Xi series graphical display capabilities — with faster zooming, panning and map rendering on the display.

    High-Resolution Display

    With almost double the pixel count of its predecessor, the GTN Xi series features wider viewing angles and one of the highest-resolution displays ever offered in this class of avionics.

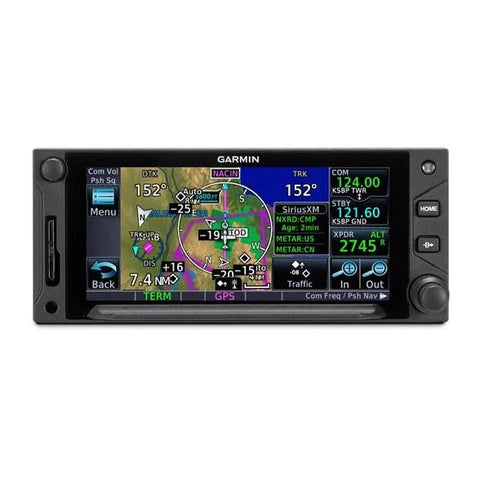

    Multifunction Display

    Supporting multiple inputs, the 4.9” display can put moving maps, terrain, traffic2, weather2, airport diagrams and more at your fingertips.

    Easy Data Entry

    Use the on-screen QWERTY keyboard or traditional concentric knobs to enter frequencies, waypoint identifiers, routings and more.

    Remote Radio Control

    In dual GTN Xi installations, remote tuning capability lets you tune frequencies on both units from either navigator. A Radios page displays all selectable Comm and Nav frequencies (active and standby) plus their volume levels.

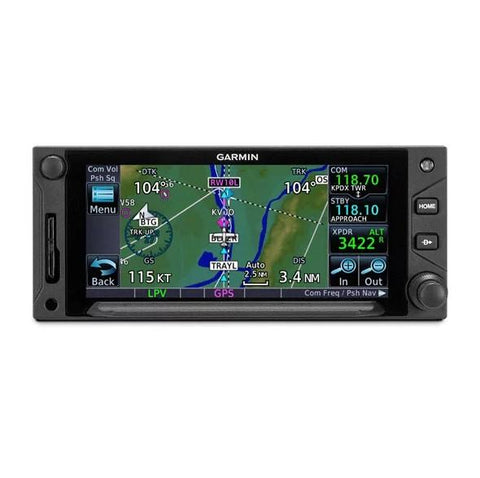

    See the Full Picture

    Graphical routing on the display lets you visualize your entire flight plan, including departures, arrivals, visual/instrument approaches, holding procedures and more.

    Direct Connect

    A Direct-to key on the bezel lets you quickly enter a direct course for any selected waypoint. A menu of nearest airports and flight plan waypoints makes for easy entry.


Features
  • Nav/Comm with VOR/localizer and glideslope receiver
  • 10W transmitter output (16W version available, see GNC-255B)
  • 25 kHz frequency channel spacing and 8.33 kHz channel spacing to meet the impeding Single European Sky mandate (European operaters by 2018)
  • Built-in VOR/Localizer converter
  • Database lookup of frequencies using navaid ID
  • VOR receiver displays to/from and radial
  • Digitally decoded OBS setting
  • Sunlight readable full alphanumeric display
  • Automatic display of station ID by decoding Morse code
  • Interfaces with most CDI (w/resolver), HSI, and autopilot systems
  • Flight Service Stations, ATC facilities, WX stations, etc.
  • Active and standby flip-flop frequencies
  • One-touch 121.5 emergency channel tuning
  • Comm frequency monitor function (listens to standby while monitoring the active)
  • Recall of frequency from database by facility name and type
  • Database reverse lookup of frequencies providing station ID andfrequency use (TWR, ATIS, etc.)
  • Volume control bar graph display
  • Alphanumeric display of frequency types (ATIS, GRND, TWR, etc.)
  • High-visibility alphanumeric LCD display
  • Transmit status indicator
  • Backlit keypad controls
  • Automatic and manual, pilot-selectable display intensity control
  • Built-in, two-place voice activated intercom
  • Frequency memory and recall
  • Stores/recalls 15 user defined frequencies
  • Stores/recalls previous 20 frequencies used
  • Squelch test function
  • Stuck mic time-out
  • 12W audio amplifier
Specifications
  • TSO applicability: C34e; 2C34f; C36e Class A; 2C36f Class A; C40c; 2C40c; C74d Class A; C112e; C128a; 2C128; C146e Class 3; C151d Class A, B; C157b Class 1, 2; 165b; C169a Class C, E, 3, 4, 5, 6; 2C169a Class C, E, H2, 3, 4, 5, 6; C194; C195b Class B1, B3, B5, B7; C209
  • Display size: 4.9" (125 mm) diagonal
  • Display resolution: 834 pixels (W) x 370 pixels (H)
  • Unit bezel height: 2.65" (67 mm)
  • Unit bezel width: 6.25" (159 mm)
  • Unit depth with connectors: 11.25" (286 mm) (measured from face of aircraft panel to rear of connector backshells)
  • Unit weight: 5.5 lbs (2.48 kg)
  • Input voltage range: 11 VDC - 33 VDC
  • Operating temperature range: -20° C to 55° C (-4° F to 131° F)
  • Number of GPS channels: 15 (12 GPS and 3 GPS/WAAS/SBAS)
  • LAT/LON position accuracy: <1.25 meter RMS horizontal, < 2 meter vertical, with WAAS
  • Maximum velocity: 1,166 knots
  • Position update Interval: 0.2 sec (5 Hz)

Garmin products have been designed for compatibility with a wide range of avionics. To confirm compatibility of Garmin equipment with your specific aircraft make/model and current avionics configuration, please consult your Authorized Garmin Dealer.

Interface

Manufacturer

Model

Notes/Info

Air Data Computer

B & D

90004-003



Honeywell (Bendix/King)

KDC 281
KDC 481



Insight

TAS 1000



Altitude Serializer/Encoder

Garmin

GTX 327




ACK Technologies

A-30 (Mod 8 and above)




ARNAV

FC-10

FT-10




Electronics International

FP-5L




Icarus Instruments

3000




JP Instruments

EDM-700




Sandia

SAE 5-35




Shadin

833811-00 (AIS-380)

8800T
9000T
9200T

F/ADC-200

F/ADC-2000

91204XT(38)D (Miniflo-L)

91053XP (Digiflo-L)

91053XT-D (Digiflo-L)

912802-( ) (Digidata)




Trans-Cal Industries

IA-RS232-X
SSD120



Audio Panel

Garmin

SL10
SL10MS
SL10M
SL10S
SL15
SL15M
GMA 340
GMA 347
GMA 35(c)
GMA 350(c)/350H(c)



Honeywell (Bendix/King)

KMA 24
KMA 24H-70/71
KMA 26
KMA 28



PS Engineering

PMA 6000
PMA 7000 Series
PMA 8000 Series



Autopilot

Garmin

GFC 500

GFC 600




Bendix

M4C
M4D




Century

I/II/III/IV
21/31/41
2000
Trident
AK 1081




Cessna

300B/400B/800B
300 IFCS/400 IFCS/800 IFCS/1000 IFCS




Collins

APS 65 ( )




Honeywell (Bendix/King)

KAP 100/140/150
KFC 150/200/250/300
KFC 225/275/325




Sperry

SPZ 200A/500




S-TEC

System 20/30/40/50/55/60-1/60-2/60 PSS/65
System 55X
ST-901



Datalink Weather Display and Control

Garmin

GDL 69/69A
GSR 56

GDL 69A also provides SiriusXM radio entertainment.
GSR 56 also provides text/voice communication

DME Control

Collins

DME 40
DME 42



Honeywell (Bendix/King)

KN62/62A
KN63
KN64
KDI 572/574
KDM 706



Narco

DME 890
IDME 891



EFIS

Garmin

G500/G600

TXi Series

G5

G3X Touch



Avidyne

EXP5000



Honeywell (Bendix/King)

EFS 40/50 (SG 465)



EHSI

Sandel

SN 3308
SN3500/4500



FIS-B Weather Display and Control

Garmin

GDL 88



Fuel/Air Data

Garmin

GTX 327



ARNAV

FC-10
FT-10



Electronics International

FP-5L




JP Instruments

EDM-700



Shadin

F/ADC-200
F/ADC-2000
91204XT(38)D (Miniflo-L)
91053XP (Digiflo-L)
91053XT-D (Digiflo-L)
912802-( ) (Digidata)



IRU/AHRS

Collins

AHS-85E



Lightning Detection Display and Control

L-3 Communications

WX-500



Multifunction Display

Garmin

GMX 200
MX20



Avidyne

EX500
EX5000



NAV Indicator

Garmin

GI 102/A
GI 106/A



Century

NSD 360A
NSD 1000



Collins

331A-6P
331A-9G
PN101 (331A-3F/3G)
IND-351D



Honeywell (Bendix/King)

KI 202A/203/204/206
KI 208/A
KI 209/A
KI 525A
KPI 552/B
KPI 553/A/B



Mid Continent

MD222-402
MD222-406
MD200-302/303/306/307



Sperry

RD 444
RD 550A
RD 650



S-TEC

ST 180



Synchro Heading Source

Bendix/King

KI-525A



TAS/TCAS/TIS Traffic Display and Control

Garmin

GTS 800/820/850
GTX 330/33/330D/33D



Avidyne (Ryan)

TAS 6XX (TCAD 9900BX)



Honeywell (Bendix/King)

KMH 880 (KMH 820)
KMH 980 (KMH 920)
KTA 870 (KTA 810)
KTA 970 (KTA 910)



L-3 Communications

SKY497 (Skywatch)
SKY899 (Skywatch HP)



Terrain Avoidance and Warning System

Honeywell (Bendix/King)

KGP 560
KMH 880 (KMH 820)
KMH 980 (KMH 920)



Transponder Display and Control

Garmin

GTX 32
GTX 327
GTX 328
GTX 33/33D
GTX 330/330D

GTX 325/335(R)/345(R)



Weather Radar Display and Control

Garmin

GWX 68
GWX 70

GWX 75



Bendix/King

RDS 81 (RS 811A)
RDS 82 (RS 181A)
RDR 2000 (ART 2000)
RDR 2100 (ART 2100)
