DAVID CLARK
DESCRIPTION

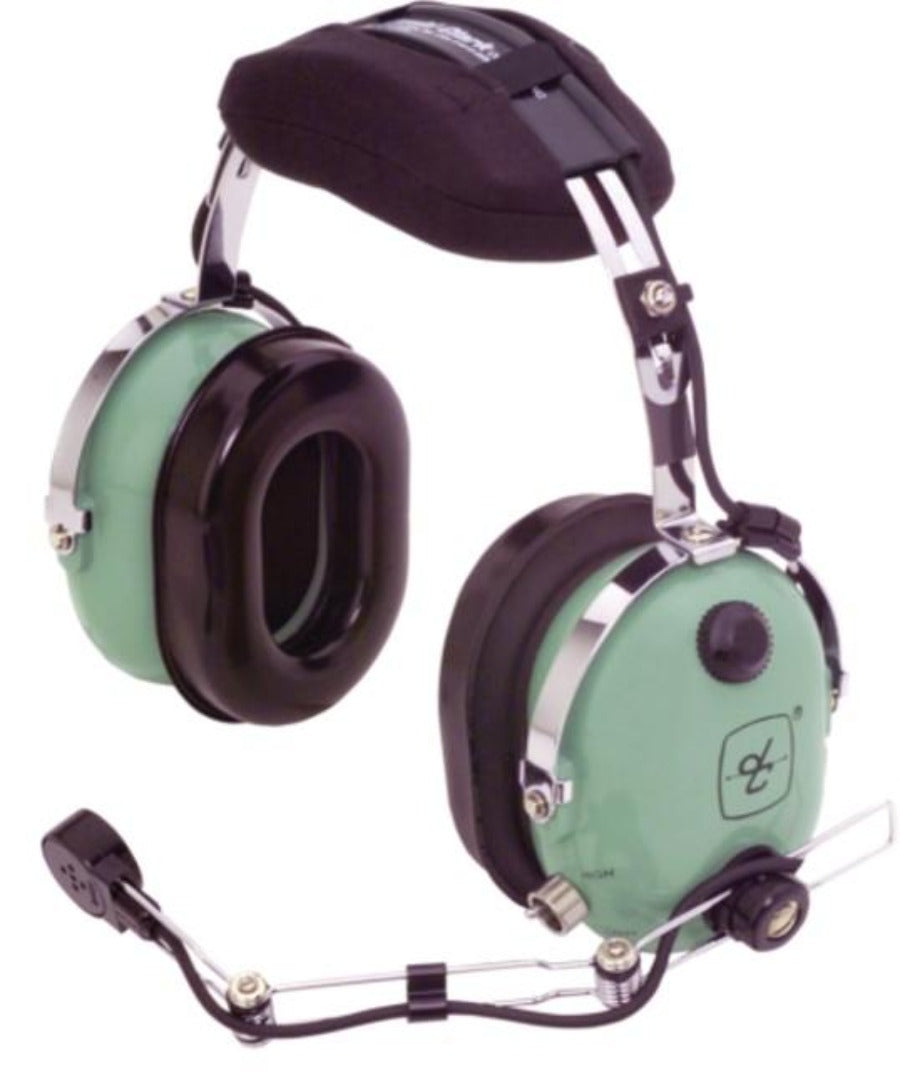

David Clark h10-66 Military Headset
"Top-Of-The-Line" standard military headset.
| A unique dual impedance headset for use in civilian and military style aircraft.
The Model H10-66 features include new comfort gel, undercut ear seals, hinged wire boom with the M-101 amplified Dynamic microphone, and a Noise Reduction Rating (NRR) of 27 dB. |
H10-66 Features:
- Headset Pressure Adjustment
- Noise Reduction Rating 23 dB
- Headband Size Adjustment
- Passive Noise Attenuating, Dual Impedance
- M-7A Microphone
- Super-Soft, Foam-Filled Pillow Headpad
- Dual volume control lets you adjust the level for each ear
- Boom Guide Lock
- Flo-Fit Gel Ear Seals
- Exclusive, patented flex/wire boom for easy, precise microphone placement
- Dome jack lets you select from three different cord assemblies
- The standard model with a straight cord (5') and dual plugs for fixed-wing use.
Specifications
| WEIGHT: | 21 Oz. | IMPEADANCE: | Switchable |
| NNR: | 27dB |
EARPHONE TYPE: |
Dynamic noise-cancelling |
| MIC: | M-101 amplified dynamic |
EARPHONE IMPEDANCE: |
150 Ω |
| EARPHONE SENSITIVITY: | 200-5500Hz |
EARPHONE PLUG: |
U-174/U |
| BOOM TYPE: | Hinged wire |
NOISE-CANCELLING MIC: |
M-87 dynamic |
| MIC IMPEDANCE: | 5 Ω +/- 20% | MIC SENSITIVITY: | Non-amplified=.07 -.14 mV @ 1khz for 103dB SPL input, or, Amplified=400mV±6dB into 150 ohm load @ 1kHz for 114dB, SPL input |
| MIC FREQUENCY RESPONSE: | 300-3000Hz | MIC PLUG: | U-174/U |
| CORD: | 5 ft coil |
