IC-A120 Base Station

Part No: IC-A120B

Shipping calculated at checkout.
Options: 110V US Version

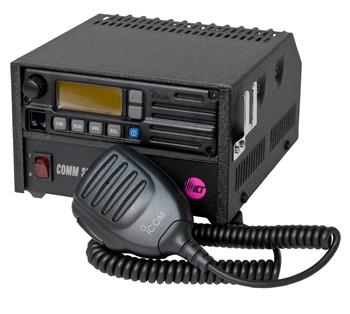

IC-A120 Base Station

Icom’s A120 air band mobile introduces two new features: Active Noise Cancelling (ANC) and Bluetooth® capabilities. The newly added built-in ANC reduces background noise and is effective in extremely noisy airport environments. The automatic noise limiter (ANL) reduces pulse-type noise such as engine ignition. Insert the optional UT-133 Bluetooth® unit and connect a third-party wireless Bluetooth® headset.

This unit is great for any mobile application and it’s available in a base station. Both are built to mil spec for superb reliability

Output power:

  36W (P.E.P)



Channel spacing:



  200 with 12 character channel names

LCD display:

  Dot-matrix with alphanumeric characters & icons

Waterproof rating:

  IP54 dust protection & water resistant

Mount option:

  Mounting bracket included

ON-hook scan and dualwatch functions

The ON-Hook scan function automatically starts scanning when the hand microphone is hooked on the microphone hanger. When you take the microphone OFF hook, the scanning stops at the priority channel or displayed channel. The Dualwatch function checks the priority and operating channels alternatively.

Side tone function

When using a third-party headset with the optional OPC-871A headset adapter, the side tone function allows you to monitor your own transmitted voice via the connected headset. Even when using a hand microphone, your voice can be monitored from the headset.


    Additional features

    • Compatible with both 12V and 24V systems
    • Dualwatch and priority scan functions
    • Power on password protection
    • CI-V commands for external control
    • Connect with other radio devices with the VE-PG3 RoIP gateway
    Frequency range (Tx/Rx) 118.000–136.992MHz

    Channel spacing

    Type of emission A3E (AM)
    Number of memory channels 200 channels
    Antenna connector SO-239 (50Ω)

    Power supply requirement

    13.75V/27.5V DC

    Current drain (at 13.75 V DC)

    5.0A (maximum)
    4.0A (at AF max.), 0.5A (at stand-by)
    Operating temperature range

    -30°C to +60°C;

    Frequency stability ±5ppm (–30˚C to +60˚C)


    Projections not included)

    161×45×193 (mm);

    6.34×1.77×7.6 (in) (approximately)

    Weight (approx.) 1.5kg; 3.3lb
    Output power (at 13.75V)
    (Carrier Power)
    9.0W typ.
    Modulation 70% to 100%
    Spurious emissions
    (* Harmonics/Non-harmonics,
    Less than -60dBc
    Microphone impedance 600Ω
    Intermediate freq. 38.85MHz/450kHz (1st/2nd)
    Sensitivity (pd) 1 μV (6dB S/N)





    2.778/7.37kHz (6dB/60dB)

    8/25kHz (6dB/60dB)

    Spurious response More than 74dBμ

    Audio output power

    Internal SP (8Ω load)

    External SP (8Ω load)

    Headphone (500Ω load)

    10% distortion, 60% modulation)

    1.5W typical

    More than 10W

    More than 100mW

    Measurements made in accordance with FCC Part 87 for USA version or EN 300 676-1 for Europe version. All stated specifications are subject to change without notice or obligation.

    Applicable U.S. Military Specifications

    Icom makes rugged products that meet MIL-STD requirements and strict environmental standards as follows:

    Standard MIL 810G
    Method Procedure
    Low Pressure 500.5 I, II
    High Temp. 501.5 I, II
    Low Temp. 502.5 I, II
    Temp. Shock 503.5 I-C
    Solar Radiation 505.5 I
    Humidity 507.5 II
    Vibration 514.6 I
    Shock 516.6 I
    Also meets equivalent MIL-STD-810-C, -D, -E and -F.

    Applicable IP Rating

    Ingress Protection Standard
    Dust & Water IP54 (Dust-protection and water resistance)

    Supplied Accessories

    • Hand microphone, HM-216
    • DC power cable
    • Microphone hanger kit
    • Mounting bracket kit
    • Fuses
