ICOM

IC-A220 TSO Certified

Part No: A220TSO 71 USA

$2,149.95
Shipping calculated at checkout.
DESCRIPTION

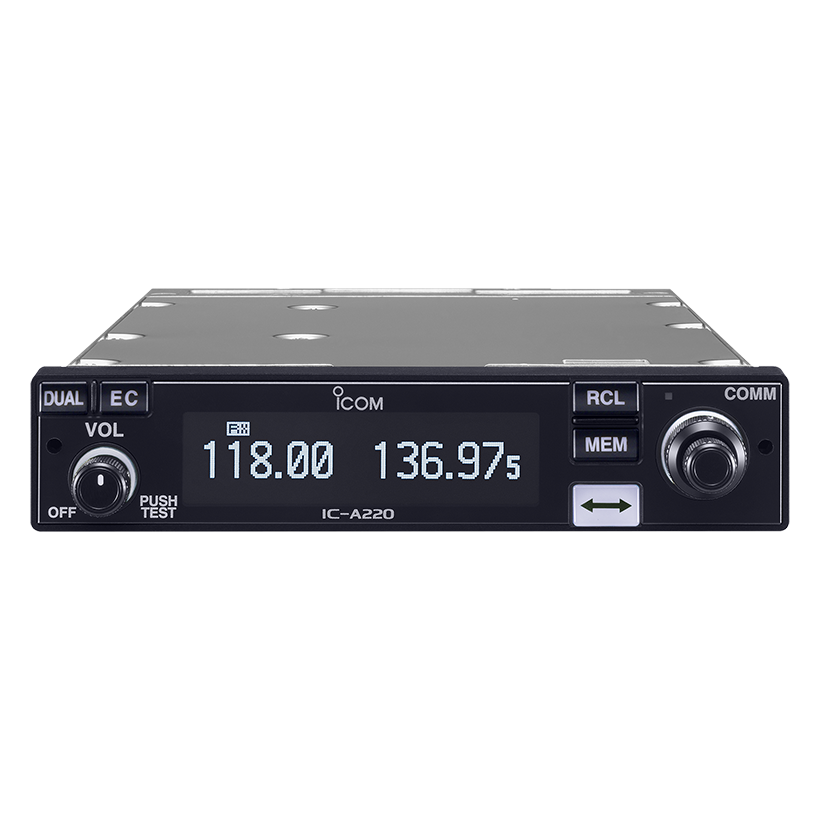

Icom’s A220 panel mount transceiver is a popular fit with experimental and light sport pilots. This ground-to-air transceiver can work on both 8.33 kHz and 25 kHz channel spacing frequencies. It features the brightest OLED (Organic Light Emitting Diode) display on the market, offering many advantages in brightness, vividness, high contrast, wide viewing angle, and response time compared to a conventional display.

IC-A220 TSO Features Include:

  • OLED display with backlight keypad, with an auto dimmer function that adjusts the display for optimum brightness day or night
  • 12V/24V DC power source
  • Built-in voice-activated intercom function allowing the pilot to talk with the copilot via the headset (GPS is NOT part of the TSO version)
  • 20 Memory channels
  • Automatic weather channel scanning and receiving

Key Features for Base Station Conversion

  • PS-80 Power Supply – Enables desktop/base operation with built-in speaker and HM-176 hand microphone for ground-based communications.
  • External Speaker Support – Connect the SP-35 external speaker for clear, high-volume audio in control towers or operations rooms.
  • Remote Control & PC Programming – Use the rear-panel D-SUB 25-pin connector for remote operation or CS-A220 software for easy channel management.
  • Dual Voltage Compatibility – Works with both 13.8V and 27.5V DC power systems, making it adaptable for various installations.
Specifications
  • Dualwatch and priority watch functions
  • One touch access to 121.5 MHz emergency frequency
  • Side tone function for monitoring your voice with a headset
  • ANL (Automatic noise limiter) function reduces pulse type noise
  • Remote control capability
  • PC programming capability
  • Dial lock and panel lock
  • Time-out-timer

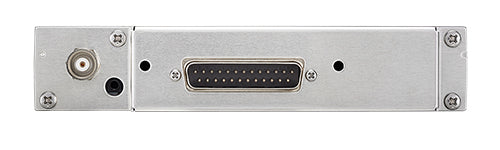

  • D-SUB 25-pin connector and MIL-Spec M39029/63-368 compliant socket pins
  • Slim 33 mm (1.3 inch) height can be installed in a limited panel space
  • Two types of menu mode; settings menu and configuration menu
  • Both 13.8 V and 27.5 V electrical systems compatible
Questions & Answers

See below for answers to our most popular questions.

Have a Question?

  • Is this a direct replacement fit to a King kx-97A tray?

    Hello and thank you for your inquiry,

    Yes, with the conversion to DSUB Card Edge by the addition of the Icom MBA-3 Rear Panel Adapter, currently priced at $91.95 on our website.

    ICOM Rear Panel Adapter – Pacific Coast Avionics

    This, however, is only for KX-97A or -197A units. Unfortunately, for KX-96A or -196A, this will not work, being 28Volts.

    Hope this helps!
