iLEVIL 2 AW

LEVIL AVIATION

iLEVIL 2 AW

Catalog No:

Manufacturer: LEVIL AVIATION

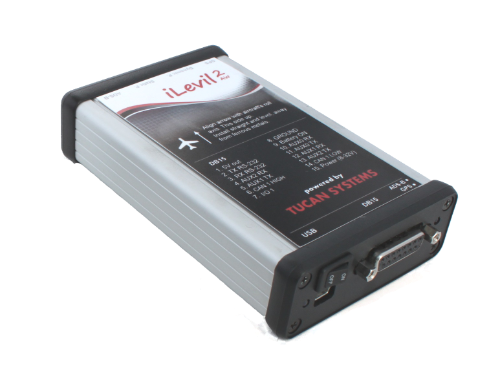

A more advanced system designed for Experimental, Light Sport Aviation, Ultralights or anything else that flies, floats or hovers!. The AW provides ADS-B weather and traffic information, GPS navigation and AD-AHRS technology. Unlike the SW version, the iLevil AW can be used as a portable or permanent-mount instrument. It integrates static and dynamic pressure transducers which make available accurate indicated airspeed and pressure altitude obtained from the pitot-static system, ultimately offering a "six-pack" solution displayed on a tablet. The iLevil AW facilitates installation with remote GPS and ADS-B antennas and power inputs for 12V and 28V systems. Compatibility with a wide range of Apps and mobile devices makes the AW the ideal all-in-one solution for a wide variety of aircraft where weight, space and cost are important. Like the SW it can connect to as many as 10 devices simultaneously, providing redundancy and almost limitless panel display diversity. The iLevil 2 AW features 3 serial ports that can be used for data transfer between tablets and other avionics in the cockpit.

Features:

 AHRS (Attitude and Heading Reference System)



  • No-drift technology: your iLevil is individually and meticulously calibrated for optimal performance to provide un-matched accuracy even during aerobatics. Can others say the same?
  • Attitude is independent from GPS: provides peace of mind at all times
  • No-lag, No-tumble: the AHRS data is refreshed at 14 frames per second, and the maximum rate of turn is 500 deg/sec! Suitable for aerobatic flying.
  • Drives Synthetic Vision: provides the best calculated pitch, roll and heading information wirelessly to your favorite SV Apps.
  • Pressure Data: available when connecting the iLevil-AW to the Pitot-Static System, completing the “6-pack” suit of primary flight instruments.

Amazing situational awareness:

  • Free in-flight weather information (USA only)
  • Air-to-Air traffic from ADS-B out equipped aircraft
  • Ground to Air rebroadcast of traffic (USA only)



GPS:

  • Supports WAAS for better GPS triangulation.
  • Reliable, accurate GPS signal eliminates GPS dropouts as opposed to tablet GPS

ADS-B receiver (978 MHz/1090 MHz):

  • Power efficient design: Maximizes reception while maintaining low power consumption, thus reducing operating temperatures and increasing battery life. We can go where others can’t!
  • Super sensitive receiver: No need for remote antennas!  Captures weather and traffic information even where the competition simply won’t reach.
  • Amazing situational awareness:
Free in-flight weather information (USA only)
Air-to-Air traffic from ADS-B out equipped aircraft
Ground to Air rebroadcast of traffic (USA only)
