Integrated Back-up Battery System IBBS

Integrated Back-up Battery System IBBS

Part No:

Manufacturer: TCW TECHNOLOGIES

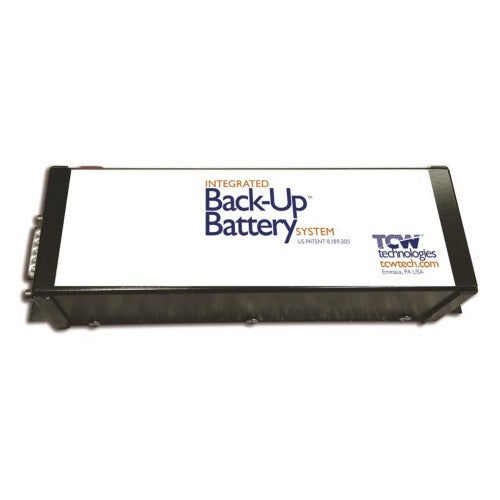

Integrated Back-up Battery System IBBS

The Integrated Back-up Battery System, IBBS, is an electronic system that combines a Lithium-Iron-Phosphate (Li-Fe-PO4) battery pack, a charger and switching logic in one convenient package.  The IBBS provides an engineered solution to enable an endurance bus for critical loads found in aircraft. It simplifies the wiring and installation of a source of back-up power by integrating all of the key elements into a single enclosure.  The IBBS system provides back-up power to critical electronic loads such as EFIS, GPS, Autopilots and engine monitor systems.

Integral to the IBBS is a lithium-iron-phosphate battery pack and a matched charging system to ensure the battery is properly charged and maintained.  The system also includes switching circuitry to provide a stable source of output power during normal and emergency operations.  The IBBS system also provides signals to other equipment such as EFIS systems to communicate the operating state of the back-up bus as well as the state of the battery.

The IBBS system connects to the standard aircraft power bus and provides an output to critical equipment that requires back-up power.  Additionally, the IBBS system provides surge and sag protection for connected equipment, allowing operation of critical equipment during engine starting.

The IBBS system is suitable for use with equipment such as Garmin GNS and GTN series navigators, G3X series of avionics, Grand Rapids Technologies EFIS systems, Advanced Flight Systems EFIS, Dynon EFIS, and MGL EFIS, TruTrak Autopilots and EFIS, Trio Autopilots.

SPECIFICATIONS:     IBBS-12v-3ah



Input Voltage: 12-15 volts DC



Transition Voltage: 10.5-11.5 volts



Input Current: 2.2 amps max continuous on main input for charging



Pass-thru Current: 5 amps continuous, 10 amps peak



Output Voltage: 10-14 volts DC during back-up operation



Output Current: 5 amps continuous/10 amps peak for radio transmissions and transient loads



Battery: Internal sealed Li-Fe-PO4



Charger: Integral high performance fast charger



Surge Protection: 34 volt active clamp, 1500w 10/1000uS waveform



Wiring: 15 pin male D-sub on product.



Enclosure: Aluminum  7.7” x 2.3” x 1.6”



Weight: 18 oz.



Temperature range: Operating  -10 C° to 60 C°/Charging      0 C° to 40 C°



Connector: Standard density 15 pin male D-sub on product
