Intelligent Lighting Controller

Part No: ILC-4CH

$349.00
Shipping calculated at checkout.
DESCRIPTION

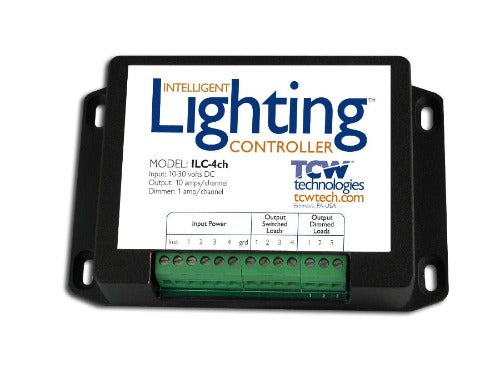

Intelligent Lighting Controller

Intelligent Lighting Controller, ILC-4ch, is an electronic controller designed specifically to operate the lighting circuits used in homebuilt aircraft. ILC provides control of up to 4 lighting circuits plus dimmable control of up to 3 channels of instrument and cabin lights. The 4 lighting circuits may be used to control landing lights, taxi lights, strobe lights, and navigation lights. Each channel is independently powered and controlled. ILC also provides a wig-wag function between two of the lighting circuits. Each lighting circuit may control up to 10 amps of load. The 3 channels of dimmable lighting may be independently controlled. Each dimmable channel may include incandescent or LED lighting up to 1 amp. ILC operates from 10-30 Vdc.

Features and Benefits:

  • Provides switching control for Landing, Taxi, Strobe, and Nav lights
  • Provides dimming control of three independent channels o instrument/cabin lighting
  • Provides Wig-wag function between two lighting channels
  • Remote mountable cast aluminum enclosure
  • Low current panel switching wire reduces wire load.
  • Independent power and switching circuits for very high reliability
  • Works with any panel switches and supports backlighting of switches
  • Universal voltage 10-30 vdc.
  • Made in USA
Specifications
Input Voltage 10 – 30 volts DC
Outputs 4 switched circuits rated at 10 amps each
3 dimmed circuits rated at 1 amp each
Dimmers True DC:DC converter with full power filtering and regulated 2-12 volt outputs
Inputs All switch inputs are low current closures to voltage
Wig-Wag 150 cycles/minute between channel 1 & 2
1 minute warm-up time
Wiring Standard 15-pin dsub connector (male on controller for connection to switching panel
Terminal blocks for all power connections rated for up to 12 awg wire
Enclosure Overall dimensions 4.7” x 3.7” x 1.2”
Cast aluminum
Weight 1 lb.
