BENDIXKING

KX 200 NAV/COMM Radio

Part No: 89000002-120-14

Pre-Order Now!

Estimated Availability: Spring 2024

$5,320.00
Shipping calculated at checkout.
Voltage: 14v
DESCRIPTION

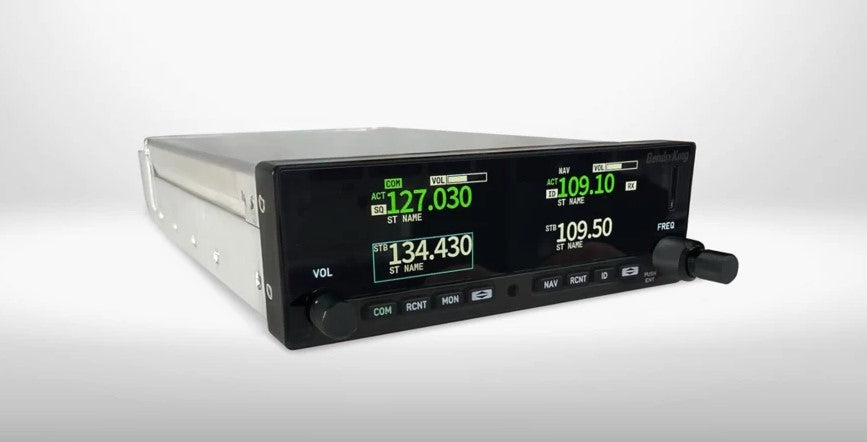

BendixKing KX 200 NAV/COMM Radio

Meet the Next-Generation BendixKing KX 200 NAV/COM Radio

General aviation’s newest and most advanced NAV/COM radio is pilot-friendly by design and an easy direct replacement for the KX 155/165. That’s because pilots were consulted at every phase of the development process that started with a blank CAD screen and ended with the creation of a groundbreaking new radio for the 2020s and beyond.

Upgrading to the KX 200 Is Easier Than Ever

Moving up to the KX 200 couldn’t be easier, since it’s a direct replacement for your current KX 155, 165 and can substitute other radios using the same tray and connector. That also means the KX 200 is compatible with existing equipment, which reduces both cost and aircraft downtime during the conversion.

Features
  •  High-resolution color LCD
  • 50-channel memory presets
  • 25kh or 8.33kh channel spacing
  • Full featured digital NAV/COM with VOR, LOC, ILS, and glide slope
  • Compatible with existing indicators and installed equipment
  • Compatible with 14- and 28-volt systems
  • Possibility to expand capabilities with future Honeywell AnthemTM cockpit connectivity
  • Two-year warranty
Specifications

Specifications

  • Supply Voltage: 14 or 28 Volt system
  • Current consumption: ≤ 750 mA @ 12V; RX RX stand-by mode, ≤ 400 mA @ 28 VDC; RX stand-by mode, ≤ 2.5 A @ 12 VDC; TX mode (m ≥ 70%, 1 kHz), ≤ 1.8 A @ 28 VDC; TX mode (m ≥ 70%, 1 kHz)
  • Operanting temperature: -20…+55 °C
  • Control interface: COM: RS422, NAV: RS422
  • Dimensions HxWxD (install. Depth): 2.1" x 6.3" x 8.8" (52.1 x 158.8 x 224 mm)
  • Weight: ≤ 1.5 kg


COMM

  • Number of channel memory: 50 + 10 Last
  • Channel labeling: Yes
  • Frequency range: 118.000- 136.991666 MHz
  • Channel spacing: 8.33 / 25 kHz
  • Modulation: AM
  • Audio frequency response: 350…2500 Hz @ 8.33 kHz channel spacing, 350…3000 Hz (typically 300…3400 Hz) @ 25 kHz channel spacing
  • Sensitivity: ≤ -93 dBm (typically -101 dBm) for AM 30%, 1000 Hz
  • Spurious response: ≥ -33 dBm
  • Dual watch (SCAN): Yes
  • Climax operation: YES, Class H2 receiver
  • Frequency change notification: Yes
  • Squetch threshold: 6…26 dB
  • Single / multicarrier distortions: ≤ 25% (typically ≤ 15%) for AM 85%
  • Transmitting power: ≥ 6 W @ 14 VDC, ≥ 10 W @ 28 VDC
  • Modulation capability: ≥ 70%, ≤ 95%
  • Frequency stability: better than ± 5 ppm
  • Modulated audio distortion: ≤ 15%
  • Modulated audio response: 350…2500 Hz
  • Stuck PPT: 35 s


NAV

  • NAV channels: 108.00 … 117.95 MHz
  • Number of channel memory: 50 + 10 Last
  • NAV sensitivity: ‘-93 dBm, -107 Dbm (typically)
  • VOR/LOC output: Composite signal for external VOR/LOC converter and indicator
  • Auxiliary power supply output: up 500 mA
  • ILS energize output: Open collector to ground discrete output
  • DME channeling: Serial DME channeling provided for KN 62A, KN 63, KN 64
  • NAV audio output power: ≥ 100 mW @ 500 Ω, ≥ 100 mW @ 600 Ω
  • IDENT notch filter: ON/OFF
  • GS channels: 329.15…335.00 MHZ
Questions & Answers

See below for answers to our most popular questions.

Have a Question?

  • Is the KX200 unit voltage specific or compatible with both 14v and 28 voltages?

    The KX200 is a multi voltage unit. The adapter that comes with the unit and is required to make it the "Slide In Replacement" is voltage specific.

  • Can this monitor the standby freq?

    Yes. One of the buttons on the face of the unit is "MON" and you push that to monitor the standby freq.

  • Can the KX200 replace the KX170 or KX175 radio?

    No, the KX200 is strictly a KX155/165 replacement.
