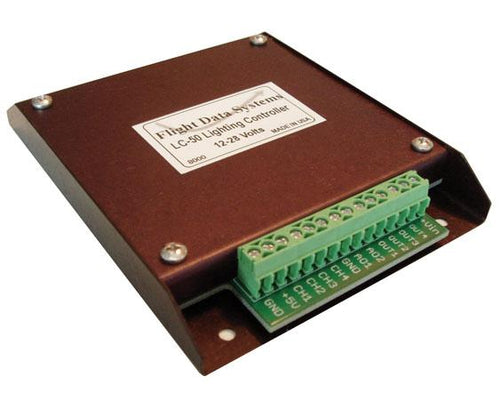

LC-50

FLIGHT DATA SYSTEMS

LC-50

Light Dimmers

Catalog No:

Manufacturer: FLIGHT DATA SYSTEMS

FOUR CHANNEL LIGHT DIMMING SYSTEM
Includes Control Pots and Wiring

               • Four Independent Channels
               • 1.5 Amps per Channel (Typically up to 18 Post Lights Per Channel)
               • Capable of Dimming LED Lighting
               • Low frequency Pulse Width Modulation control eliminates bulky heatsinks
               • Overload and Short Circuit Protection
               • Compact and Lightweight

               • Two Analog outputs for dimming these devices:
               • Garmin LCD Displays G3X, G900X, etc...
               • Garmin 400/500/600/700 series Radios
               • Garmin GTX 327/330 Transponders
               • Garmin GMA 347 Audio Panel
               • Tru-Trak ADI Pilot
               • Tru-Trak Pictorial Pilot
               • Newer PS Engineering Audio Panels
               • Rate and Offset adjustments for each channel allows exact matching of dimming behavior of each channel. Multiple channels can then be joined and controlled by a single knob.
