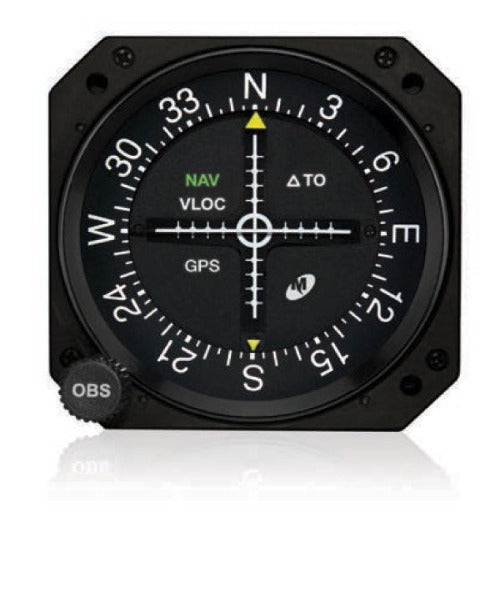

|The MD200 Series sets the standard for navigation instruments that are significantly more reliable, longer lasting and easier to read. Thousands have been sold by Garmin with the popular GNS 430/530 systems and the GTN Series touchscreen navigators. The MD200 Series is the preferred replacement for the Collins Micro Line IND 350 Series and replaces the BendixKing KI206.
Built-in annunciators are easy to view and save hundreds of dollars on most installations. These CDIs feature new-generation rectilinear meter movements for more accurate readings, plus a course selector and resolver output.
The MD200 Series can be configured for 14V or 28V installations.
|DIMENSIONS :||(without connectors, mates & knob) Bezel: 3-1/8” diameter, Chassis: 3.25” x 3.25” x 4.75” (HxWxD)||WEIGHT:||MD200-706: 1.3 pounds (0.59 kg)|
|INPUT VOLTAGE:||12-32 VDC||INPUT CURRENT:||0.2 amps (maximum)|
|UNIT LIGHTING INPUT:||5, 14, or 28VDC||ANNUNCIATOR LIGHTING:||Automatic dimming control via internal photocell (adjustable)|
|OBS RESOLVER :||Electrical zero: 300° ±1° ORZ||MOUNTING:||Rear mount|
|POINTER DEVIATION:||Input impedance: 1k ±10%, Deflection sensitivity: 150mV ±10% full scale deflection||VALID SIGNAL:||Input impedance: 1k ±10%, Valid sensitivity: 260 mV ±10% to display pointers|
|TO/FROM INDICATOR:||Input impedance: 200 ±10% , Annunciator sensitivity: 40mV ±15%||COURSE DATUM OUTPUT:||Standard ARINC X, Y, Z; 11.8VRMS (400 Hz)|
|MATING CONNECTOR:||3-pin AN type female (MS3106A14S–7S with MS3057–6A)||COVER GLASS:||HEA (anti-reflective) coated per MIL-C-14806|
|MATING CONNECTORS:||25-pin D-Sub, MCIA p/n 7014517, 9-pin D-Sub, MCIA p/n 8017287 (-707 only)||LIGHTING:||Light emitting diodes (LEDs)|
|QUALIFICATION:||FAA TSO-C34e, C36e, C40c EASA ETSO C34e, C36e, 2C40c||ENVIRONMENTAL QUALIFICATION:||RTCA DO-160B/G|
