WHELEN

Orion 500 Aircraft Position/Anti-Collision Lights

Part No: 01-0771774V01

$470.00 $495.00
Shipping calculated at checkout.
Options: 14V, White
DESCRIPTION

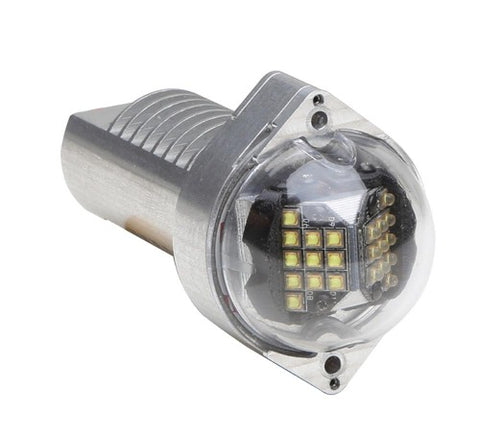

Whelen Orion 500 Aircraft Lighting LED

The Orion™ 500 Series products incorporate both the WHITE flashing Anti-Collision light and the Tail Position light functions. State-of-the-art LED circuitry is built in to eliminate the need for separate flasher boxes for operation.

Whelen LED Aircraft Anti-Collision Lights Footprint

The footprint, and mounting, are identical to legacy Whelen products for ease of installation and retrofit. Fully FAA/TSO and STC approved.

Aircraft Position Lights Information

  • Drawing 71774
  • Weight 0.28 lbs.
  • Current Draw 14V / 28V 0.20 / 0.10 Amp (Position) 3.8 / 1.9 Amp (Anti-Collision) Average
  • Lenses Clear Hardcoated Polycarbonate

Aircraft Lighting LED Certifications

OR5001V - 01-0771774V01 - White Tail Position / Anti-Collision Light Assembly, 14 VDC

FAA TSO-C96a Class II / TSO-C30c Type III / STC

OR5002V - 01-0771774V02 - White Tail Position / Anti-Collision Light Assembly, 28VDC

FAA TSO-C96a Class II / TSO-C30c Type III / STC

Orion 500 Aircraft Anti-Collision Lights
