WHELEN
Orion 650E LED Airplane Wing Lights
Part No: 01-0790701-01
Shipping calculated at checkout.
DESCRIPTION
Orion 650E LED Airplane Wing Lights

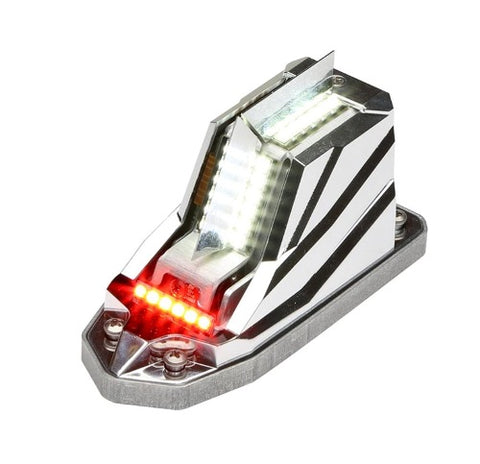

The Orion 650E series products incorporate RED or GREEN forward Position Lights as well as the WHITE flashing Anti-Collision light function. State-of-the-art LED circuitry is built in to eliminate the need for separate flasher boxes for the operation.
Whelen Wing Lights Aircraft Certified Flush Mount

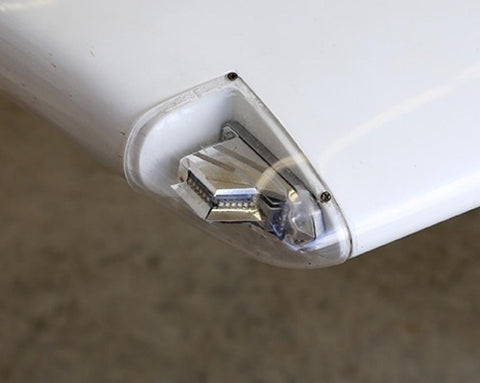

Designed to be flush-mounted behind a lens, the footprint, and mounting, are identical to legacy Whelen products for ease of installation and retrofit. Fully FAA/TSO & STC approved.
Airplane Wing Tip Light Information
- Drawing 90701
- Weight .27 lbs.
- Current Draw 14V / 28V 0.30 / 0.15 Amp (Position) 0.70 / 0.35 Amp (Anti-Collision)
Airplane Wing Lights Certifications
OR6501GE - 01-0790701-01 - Embedded Green Position Light/ Anti- Collision Light Wingtip Assembly, 14 VDC
FAA TSO-C96a, TSO-C30c Types II
OR6501RE - 01-0790701-02 - Embedded Red Position Light/ Anti- Collision Light Wingtip Assembly, 14 VDC
FAA TSO-C96a, TSO-C30c Types II
OR6502GE - 01-0790701-11- Embedded Green Position Light/ Anti- Collision Light Wingtip Assembly, 28 VDC
FAA TSO-C96a, TSO-C30c Types II
OR6502RE- 01-0790701-12 - Embedded Red Position Light/ Anti- Collision Light Wingtip Assembly, 28 VDC
FAA TSO-C96a, TSO-C30c Types II
** ANY OF THE ORION™ 650E PRODUCTS ARE TO BE MOUNTED BEHIND A LENS NOT TO BE MOUNTED EXTERNALLY ON AIRCRAFT. **
Whelen Orion 650e - Airplane Red and Green Lights With White Option
