Part No: 11960

Shipping calculated at checkout.

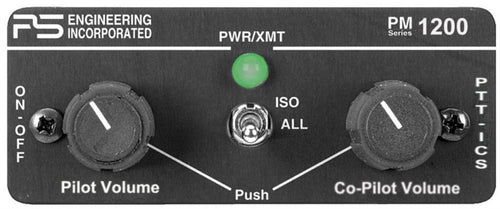

PS Engineering PM1200 Intercom

PS Engineering's PM-1200 is a two place panel mount intercom designed for the loudest of aircraft. Designed to be a direct replacement for PS Engineering PM-1000 series it provides unprecedented noise reduction capability.

Not only does it use our proven patented IntelliVoxr automatic squelch circuit, but also includes our latest invention, the "Active Microphone Processor", better known as AMPT. This new system actively reduces noise that is picked up by the microphone, dynamically reducing the background noise heard in the headset when the VOX is opened.

PS Engineering PM 1200 Functionality

There has never been an intercom that provides as much intelligibility as the PM1200, PERIOD.

This new intercom system will be able to tame the noise of cockpits such as the P-51, B-17, PV-2, T-6, T-28, and the Pitts S2B. We know because we have flown these aircraft and know exactly what needed to be done!

The PM-1200 also provide ample headset volume, with audio amplifiers that will supply to the general aviation headset as much as 120 mW (almost twice that of our regular intercoms) in 28 volt aircraft. Additionally, by a push of the Copilot volume control, the system will convert to VOX to PTT-ICS.

The unit can also be ordered in the Blind Mount configuration, allowing the owner to make the installation of this intercom completely in the confines of the original equipment of the aircraft. You can keep your aircraft authentic while still having the best intercom available.

  • Integral 4-place stereo intercom designed for high noise environments
  • Contains active noise cancelling circuitry reducing background noise
  • Intellivox automatic VOX squelch
  • Direct replacement for PM1000 series intercoms (P/N 11902, 11922, 11909)
  • Isolate, Crew and All intercom modes
  • Outputs 120 mW for ample headset volume (almost twice that for normal intercoms)
  • 1 year warranty
  • Input power: 13.8 - 27.5 Volts DC
  • Current Drain: < 250 mA (Externally fused at 1 Amp)
  • Output 120 mW into 150£[ @ 27.5 VDC
  • 70 mW @ 13.75 VDC
  • Headphone Impedance: 150-1000 ohms typical
  • Aircraft Radio Impedance: 500- 1000 £[ typical
  • 3 dB Music Frequency Response: 200 Hz to 15 kHz
  • Unit weight: 12 Ounces (0.342 kg)
  • Dimensions: 1.25" H x 3.00" W x 5.80" D
  • (3.2 x 7.6 x 14.7 cm)
  • Temperature -20ºC to +55ºC
  • Altitude 50,000 ft.
