PS ENGINEERING

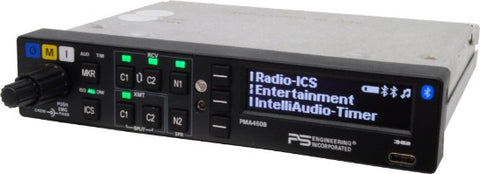

PMA450B Audio Panel with IntelliAudio

Part No: 050-450-0601

$2,595.00
Shipping calculated at checkout.
Option: w/Marker Beacon
DESCRIPTION

PMA450B Audio Panel

The PMA450B is the second generation digitally based audio panel that is based upon a DSP (Digital Signal Processor). Licensed patented technology from the United States Air Force that was designed for the fighter pilot, who is inundated with multiple audio signals, is now available to the GA pilots.

Another leap forward is PS Engineering’s improved and unique graphical user interface. Using OLED technology, the larger display is easier to read from any angle and lighting conditions.

The new USB – C standard also brings more power to the pilot. This USB port is for powering devices up to 15 Watts, 33 % more power than was available before.

IntelliAudio® gives the pilot the capability to pay attention to the radio that is important to their flight at any one instant in time. Consider Com 1 coming from the 10 o’clock position while Com 2 is coming from the 2 o’clock position, just like being at a cocktail party, you are able to pay attention to the person who is telling you something important while ignoring the other conversations that aren’t.

The 3 Soft-key user interface is unprecedented for audio control panels. With more and more capability provided by our audio panels, we found it necessary to make access to these functions easier. If you can read English you’ll be able to get all of the capability from the PMA450B without ever having to open up the User’s Guide.

PMA450B Compatibility

A new option for the PMA450B is the PS Streamer™. This system will steam selected audio to external, Bluetooth® enable devices, such as ProGo® cameras or other audio dongles.

This audio panel is plug ‘n play with GARMIN’s GMA340, which makes upgrading as easy as 1-2-3. The existing wire harness and tray that is installed for the GMA340 are complete and there is nothing to add or change. Get all of the new capabilities by simply removing and replacing them. A simple logbook entry is all that is required.



PMA450B For Sale and Installation

Need help or recommendations on products or flight panel layouts? Our experts have all the expertise you need! If you are curious about compatibility on your aircraft or have questions about PMA450B integrations feel free to reach out to us during normal business hours!

Reach our team of experts at 800-474-9714 to order!

Visit our installation page for panel layout options!

Features

PMA450B capabilities:

  • 3 Softkey User Interface integrated with OLED Graphics Display allowing intuitive operation as well as wide-angle view in all levels of cockpit lighting
  • IntelliAudio® True Dimensional Sound enhances the ability to  listen to two com radios at the same time
  • Enhanced Bluetooth® provides complete control of telephone functions at the audio panel.  Caller ID,  volume, answering, and hang up, all from the front panel.
  • Bluetooth® Music Streaming with front panel volume control
  • USB-C Charging Port provides 15 Watts of power with Auto-Protection preventing electrical shorts from being an issue.
  • 3 Independent Music Inputs, Music #1, Music #2, and Bluetooth® Streaming
  • Enhanced Digital Aircraft Radio Recorder with a display of Com and message number that is being played back
  • 6 place IntelliVox® automatic VOX hi-fi stereo intercom with advanced intercom functions such as Alternate Intercom Function and Copilot as Passenger
  • 3 User-definable switched inputs
  • Monitor Mode allows automatic muting of non-primary radio
  • 3 music mute modes: Mute On, Mute Off, Radio Mute
  • Volume control for Intercom, Speaker, Marker Beacon Audio, 3 Switched Inputs, Telephone, and all Music Inputs
  • Built-in Marker Beacon Receiver
  • Split mode for dual audio panel capability
  • 3 Isolation modes - Pilot Isolate, All, and Crew
  • 4 - 6 un-switched inputs
  • Selectable music distribution for pilot, copilot, and passengers
  • RAM (Radio Active Mute) eliminates constant background noise from radio static
  • 2-year Pro-Support Warranty
Specifications
Weight 1.34 lbs
Dimensions 7.15 × 6.25 × 1.3 in
Select Model:

With Marker Beacon, Without Marker Beacon

Brands



SPECIFICATIONS

DC CHARGING JACK: FAA TSO C71 PMA450B UNIT WEIGHT: 1.34 lb. (0.61 kg)
OPERATING TEMPERATURE RANGE: -15º C to 55ºC RACK WITH CONNECTORS: 0.51 lb. (0.24 kg)
AUDIO SELECTOR / INTERCOM: FAA TSO C139a, Class 1a VOLTAGE: 11-33 VDC
APPLICABLE DOCUMENTS: RTCA/DO-214A RTCA/DO-143 RTCA/DO-160G RTCA/DO-178C, DO-254 MAXIMUM CURRENT: 3.5 Amp (Externally protected by a 5A pull-type breaker)
ALTITUDE: Up to 35,000 feet in an non-pressurized area INPUT ISOLATION: 60 dB (min.)
RECEIVER INPUTS: 7 (Com 1, Com 2, Nav 1, Nav 2, 2 ea. Additional Switched Inputs available or ADF, DME, etc.) AUDIO SELECTOR PANEL IMPEDANCE: Input-510 Ω
UNSWITCHED INPUTS: 4 (Two switched inputs can be converted to unswitched, if desired, during installation.) TRANSMITTER SELECTOR: 3 (Com 1, Com 2, Com 1/2)
HEADPHONE IMPEDANCE: 150 – 1000 Ω HEADPHONE OUTPUT: 30 mW each headset, no clipping <.5% THD typical
SPEAKER OUTPUT: (into 4 Ω) with no clipping 14 VDC: 3 Watts (min.) 28 VDC: 10 Watts (min.) MICROPHONE IMPEDANCE: 150 – 600 Ω
INTERCOM POSITION: 6 places (with individual IntelliVox® circuits) MUSIC INPUTS: 2 (Independent, Stereo)
DISTORTION: <1% THD @ 30 mW into 150Ω MIC FREQ. RESPONSE: 3 dB-300 Hz – 6000 Hz
MUSIC FREQ. RESPONCE: 3 dB-10 Hz – 26 kHz SPEAKER IMPEDANCE: 4 Ω
BLUETOOTH RADIO: Class 3, FCC ID QOQWT32AE or QOQWT32I MARKER BEACON: FAA TSO C35d, Class A
DIMENSIONS: Height: 1.3 in. (3.3 cm) Width: 6.25 in. (15.9 cm) Depth behind panel 7.15 in. (18.16 cm) SPEAKER MUTING: -60 dB (min.)
