PS ENGINEERING

PMA6000B

Part No: PMA6000B

Regular Price: $1,495.00
Shipping calculated at checkout.
DESCRIPTION

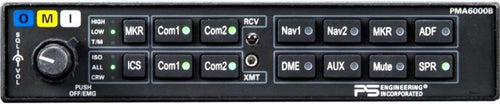

PMA6000B 4 Place Intercom Aircraft Certified

PS Engineering has revolutionized audio control in general aviation airplanes. At that time, the original PMA6000 took the audio panel from a collection of switches added as an afterthought, to a multitalented intersystem focal point for cockpit audio.

Radio selection, cockpit communications and even music were seamlessly combined in the modern audio control panel. The PMA6000-series set a benchmark for all GA audio panels that followed.

The next generation PMA6000B has been given the benefit of PS Engineering's 20+ years of audio panel control design and 35+ years manufacturing experiences. It offers a low cost alternative to the  more capable audio panel product line that the industry has become to expect from such a focused driven company.

The PMA6000B combines an audio selector panel with a top-quality manually adjusted VOX intercom and a slew of features to enhance versatility and utility.






      Features

      Panel Mount Aircraft Intercom Features:

      • Uses a single 44-pin connector making installation easier.
      • Built-in 4 place mono intercom providing great cockpit communications.
      • The PMA6000B comes with or without a built-in marker beacon receiver.
      • Split mode allows the pilot and copilot to independently and simultaneously use both radios, even transmitting simultaneously on different frequencies.
      • Pilot and crew/passenger isolate functions are an integral part of the design.
        Dual mono music inputs for passengers and crew are standard features. · PSE's renowned Soft Mute technology gently and subtly ramps the music down when the conversation comes across either the intercom or the radio.
      • A patented "swap" function (Patent #5,903,227) allows pilots to use a yoke-mounted switch to select Com 1 and Com 2 options without reaching for the panel.
      • High-quality, single VOX manual control, voice-activated circuitry, and individual microphone channels form the heart of the intercom system.
      • Passengers have their own voice and audio amplifiers.
      • Backlit switches linked with a photosensor carefully calibrate panel lighting to cockpit levels for all situations.
      • The fail-safe feature automatically hard-wires the pilot to Com1 in the case of an outage.
      Specifications



      FAA TSO: Marker Beacon: C35d, Class A; Audio Selector/Intercom: C50c, Class A ENV. CATEGORIES: A1D1/CAMXXXXXXXBBBBAAX
      MAX. CURRENT: 1 amp OPERATING CURRENT: 350mA (typical, speaker off), 600mA -speaker on (1 amp peak)
      TEMPERATURE: -20°C to 55°C Operating; -40°C to +85°C Storage ALTITUDE: Up to 50000 ft. in an non-pressurized area of the cockpit
      DIMENSIONS: 6.25"W x 1.3"H x 6.8"D WEIGHT: 1.5 lbs. (w/rack & connectors)
      POWER REQUIREMENTS: 13.75 or 27.5VDC MAX CURRENT: 1 Amp
      INPUT IMPEDANCE: 510 Ohms for all audio inputs INPUT ISOLATION: -70dB
