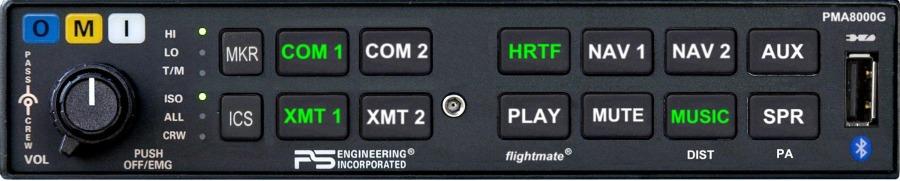

PMA8000G Audio Panel

PMA8000G Audio Panel

Part No:

Manufacturer: Pacific Coast Avionics

PMA8000G

The PMA8000G marks another major milestone in the company’s innovative history. This audio panel presents significant advancements in audio panel technology. It will fit pilots who expect more from their audio panel while not adding any additional work load or complex set of push button sequences. The PMA8000G is a natural choice for pilots who demand ease of use with a deep set of audio panel capabilities.


Introducing flightmate®, the first system ever to be available in an audio selector panel. The pilot can create checklists, emergency procedures, just about anything that pilot can say, they can store into non-volatile memory, making those checklist chores a bit easier. IntelliAudio® is another standard capability that will make listening to multiple radio calls manageable. With Com 1 in the 10 O’clock position and Com 2 in the 2 O’clock position, pilots can pay attention to the radio that is most important at any one instant of time. Bluetooth® interconnectivity allows the pilot to have access to their Bluetooth® enabled telephone or entertainment device. The ability to contact ATC by way of the telephone with the engines running and radios tuned and set at an uncontrolled airfield makes getting into the air under IFR condition much easier.

Aural alert annunciations can be program right from the front panel while using the pilot’s headset microphone to record them. Now you can take up to 4 discrete inputs and have them associated with pre-recorded messages, making it easier to determine exactly what condition needs to be addressed.
We have also included a USB charging port that is rated at 10 watts. This charger provides enough power for iPads that are running the most demanding application.
Finally, ease of use. We took a fresh approach to the user interface, making access to the advanced functions much easier than in past iteration of the PMA8000 series.

Additional Capabilities

  • 10-Watt USB Front Panel Charging Port
  • Split mode for dual audio panel capability
  • 6 Place hi-fi stereo intercom with Soft Mute™
  • ASC (Active Static Control) eliminates constant back ground noise
  • 3 music mute modes: Mute On, Radio Mute, Mute Off
  • Built-in Marker Beacon Receiver
  • Cellular telephone input with "DuTel™" telephone distribution
  • 2  Differential, hi-fidelity stereo music source inputs (no ground loop noise)
  • 3 Isolation modes - Pilot Isolate, All, and Crew
  • 4 unswitched inputs
  • Selectable music distribution for passengers
  • 2-year Pro-Support Warranty
MARKER BEACON:  FAA TSO C35d, Class A ETSO 2C35d AUDIO SELECTOR/ INTERCOM: FAA TSO C50c, Class 1a ETSO C50c
APPLICABLE DOCUMENTS: RTCA/DO-214 RTCA/DO-143 RTCA/DO-160D RTCA/DO-178B DO-254 QUALIFICATIONS: A1D1CABSMXXXXXXZBABATBXXE2XXX
OPERATING TEMPERATURE RANGE: -15º C to 55ºC VOLTAGE: 11 to 33 VDC
DIMENSIONS: Height: 1.3 in. (3.3 cm) Width: 6.25 in. (16.9 cm) Depth behind panel 7.15 in. (18.16 cm) MAXIMUM CURRENT:  2.5 Amp (Externally protected by a 5A pull-type breaker)
ALTITUDE:  Up to 50,000 feet in an non-pressurized area INPUT ISOLATION:  60 dB (min.)
WEIGHT:  Unit 1.34 lb. (0.61 kg), Rack & connectors 0.51 lb. (0.24 kg) AUDIO SELECTOR PANEL IMPEDANCE: Input-510 Ω
UNSWITCHED INPUTS: 4 TRANSMITTER SELECTIONS: 4 (Com 1, Com 2, TEL Com1/2)
HEADPHONE IMPEDANCE: 150 – 1000 Ω HEADPHONE OUTPUT: 38 mW each headset, no clipping <1% THD
SPEAKER IMPEDANCE:  4 Ω MICROPHONE IMPEDANCE: 150 - 600 Ω
INTERCOM POSITION: 6 places (with individual IntelliVox® circuits) MUSIC INPUTS: 2, (Independent, Stereo)
MUSIC MUTING: >-30 dB "Soft Mute" when Com or intercom active DISTORTION: <1% THD @ 38 mW into 150
MIC FREQ. RESPONSE  3dB, 300 Hz - 6000 Hz FREQUENCY: 75 MHz Crystal Controlled
SENSITIVITY :

Capable of: (preset at factory for field application) Low: 1000 µVolts (Hard) (360 to 570 µV soft) High: 200 µVolts (Hard) (130 to 200 µV soft)

SELECTIVITY: -6 dB at ±10 kHz -40 dB at ±120 kHz
EXTERNAL LAMP OUTPUT: 7.5 (±4 VDC unloaded, at maximum brightness) VDC positive when active, max. current 125 mA MM SENSE: Active high (4.5 ± 1.0VDC)
BLUETOOTH RADIO: Class 3, FCC ID QOQWT32AE RECEIVER INPUTS: 8 (Com 1, Com 2, TEL, Nav 1, Nav 2, ADF, DME, AUX)
USB POWER CONVERTER: FAA-TSO C71 USB CHARGING PORT: Voltage - +5VDC Current - 2.0A (10W Maximum) output, short circuit and over-current protected
MUSIC FREQ. RESPONSE: 3dB, 10 Hz – 26 kHz SPEAKER OUTPUT: (into 4 ) with no clipping 14 VDC: 28 VDC: 3 Watts (min.) 10 Watts (min.)
