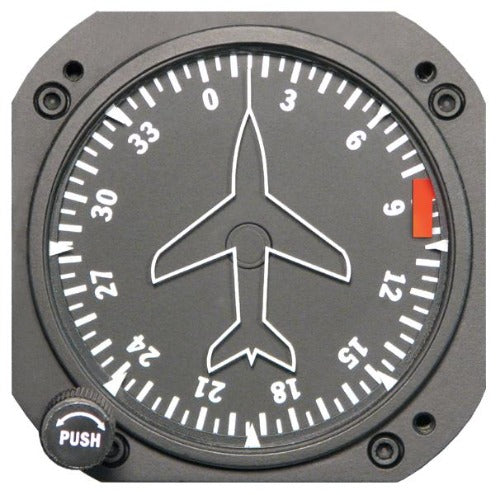

Vacuum Directional Gyro w/ Warning Flag
|
The RCA-11A series of vacuum directional gyros utilize and air driven precision gyro that controls a vertical rotating azimuth gimbal. The R.C. Allen Model RCA11A has been designed to provide a long life of accurate operation even when subjected to severe operating requirements. This instrument is engineered with a minimum of machined parts, providing lower initial cost and lower maintenance cost through its lifetime. The RCA11A is non-tumbling within ±85° limits in pitch and roll and can be easily installed in any 3 1/8" panel cut out. Full freedom design allows accurate indication, even after extreme maneuvers. Stainless steel is used at wear points, with aluminum investment and die castings. A knob is provided to reset the gyro, when compared to the magnetic compass. the RCA11A-8 features the "standard" display. Meets or exceeds all requirements of FAA TSO C5c and Aeronautical Standard AS397. |
- Air driven precision gyro controls vertical rotating azimuth gimbal
- Long life of accurate operation
- Non-tumbling within +85° limits in pitch and roll
- Standard display with flag
| Weight | 2.3 lbs |
|---|---|
| Dimensions | 6.7 × 3.4 × 3.4 in |
| Brands |
Specifications
The RCA11A is non-tumbling within ±85° limits in pitch and roll and can be easily installed in any 3 1/8″ panel cut out. Full freedom design allows accurate indication, even after extreme maneuvers. Stainless steel is used at wear points, with aluminum investment and die castings.
A knob is provided to reset the gyro, when compared to the magnetic compass. the RCA11A-8 features the “standard” display.
Meets or exceeds all requirements of FAA TSO C5c and Aeronautical Standard AS397.
Made in the USA
