R.C. ALLEN
RCA2610-3 Digital Attitude Indicator
Part No: 102-0403-11-01
Shipping calculated at checkout.
DESCRIPTION

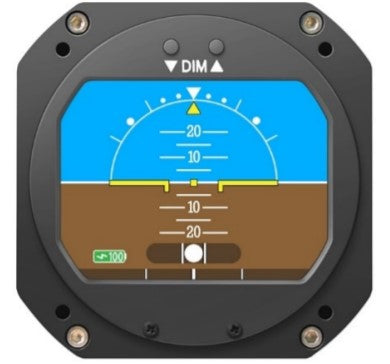

RCA2610-3 Digital Attitude Indicator
The RCA2610 is the updated version of the popular RCA2600 Electric Digital Attitude Indicator. The new version
has the same form, fit, and function as the original but has dual processors, improved screen resolution and updated
software. The optional Pitch Sync feature allows pilots to instantly synchronize the airplane symbol to the
horizon line when flying in a pitch up or pitch down attitude.
We also offer the RCA2610-G version that comes without the Pitch Sync feature which functions like the original
model with the brightness controls only. Order: RCA2610-3-G (3 inch) or RCA2610-2-G (2 inch).
The RCA2610 is designed to handle the high vibration environment found on helicopters and yet, their light weight
makes them perfect for soaring. This makes the RCA2610 the most versatile and dependable Digital AI on the
market today. With no moving parts to wear out, this instrument will provide years of reliable service - that’s why we
include a full two-year warranty!
All RCA2610 models can be ordered with an optional slip indicator (inclinometer) (Order P/N 444-0010-01) which
satisfies FAA AC 91-75 for even greater versatility.
Features
- The RCA2610 is totally self-contained and has no mechanical gyro or special external connections
- The three-inch RCA2610-3 also comes with an optional Internal Battery Backup
- The standard Pitch Sync feature allows pilots to instantly synchronize the airplane symbol to the horizon line when flying in a pitch up or pitch down attitude
- All models come with an NVIS Night Vision filter option
- The screens are highly visible and have adjustable brightness controls
- Performance characteristics include full 360 degrees of roll and pitch with a settling error of 1 degree maximum
- With no moving parts RCA2610 will have a longer lifespan than traditional gyroscopic instruments
- New Digital Slip Indicator
- New Digital Rate of Turn Indicator
- Internal Battery Backup
- Pitch Sync feature
- 360 degrees of pitch and roll
- Multi-volt operation (9 to 32 VDC)
- Bright, adjustable LCD Display
- NVIS Night Vision Option
- Fits standard 2” or 3” panel cutout
- Totally digital operation (no moving parts)
- Black anodized bezel
- Fully FAA Certified
- TWO-YEAR WARRANTY
- Attitude Indicator with Digital Slip Indicator and Digital Rate of Turn Indicator
- Attitude Indicator with Digital Slip Indicator only
- Attitude Indicator only with optional Mechanical Slip Indicator (P/N 444-0010-01)
- New Internal Battery Backup option for All 3-Inch configurations
Specifications
| WEIGHT: | 6.75 oz. | HEIGHT: | 3.37 in. max |
| LENGTH: | 1.22 in. max | WIDTH: | 3.37 in. max |
| CONNECTOR PIN-OUT: | A: GROUND B: + POWER IN C: SPARE D: SPARE | MATING CONNECTOR: | (MS3116E8-4S) & panel screws included |
| CERTIFICATIONS: | TSO-C4c, TSO-C113a, DO-160G, and DO178B Level C TSO-C3e | OPERATING VOLTAGE: | 9 to 32 VDC |
| CURRENT DRAW: | 0.20 A max | CIRCUIT BREAKER: | 1 A |
Questions & Answers
See below for answers to our most popular questions.
-
does the RCA2610-3 Digital Attitude Indicator come with any certifications
Hello and thank you for your inquiry.
When ordering, please assure you specify with or without Pitch Sync and, which size, the two or three inch version, you need.
FAA TSO-C4c, TSO-C113a, and TSO-C3e (Rate of Turn) Certification Includes 2-year limited warranty.
8130 and CoC are also included with each unit.
Hope this helps.
