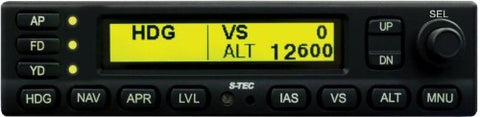

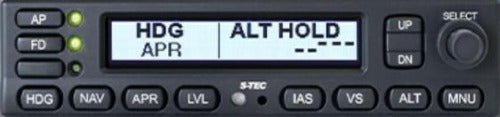

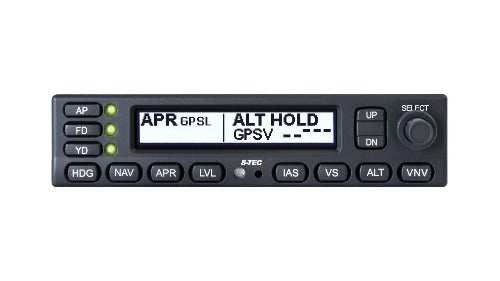

S-TEC 3100

Part No:

Manufacturer: GENESYS AEROSYSTEMS/S-TEC

Call for price

The most advanced autopilot for the most types of single- and twin-engine aircraft


Announcing the next-generation Genesys Aerosystems S-TEC 3100 Digital Flight Control System (DFCS). The S-TEC 3100 is a fully featured, attitude-based autopilot that gives you a list of workload-reducing and safety-enhancing capabilities that were previously unavailable on aftermarket autopilots. Compatible with advanced digital sources & EFIS displays from Garmin, Aspen and others, the S-TEC 3100 delivers unmatched features and benefits:
  • Precise, digital flight control for every phase of flight
  • 2-axis (3-axis option on some models)
  • Automatic Trim included
  • Envelope Protection/Alerting
  • Straight and Level Recovery
  • Precision Approaches/Missed Approaches
  • Indicated Airspeed Hold
  • Altitude Preselect
  • And much more!

The award-winning Aspen Evolution Pro MAX primary flight display (PFD) and the S-TEC 3100 autopilot by Genesys Aerosystems have created an autopilot solution to provide the highest level of safety and precision flying for general aviation aircraft.

Aspen’s Pro MAX PFD with the Genesys Aerosystems S-TEC 3100 Autopilot enhances and expands the basic S-TEC 3100 Autopilot function and streamlines the controls, reducing workload and removes the need for some external adapters. When combined with all the features and benefits of Aspen’s glass panel technology, flying becomes easier and safer, especially for single pilot IFR missions

S-TEC 3100 Digital Flight Control System Brochure (PDF)
  • 2‐axis Roll and Pitch
  • 3‐axis Roll, Pitch and Yaw (on select aircraft)
  • Includes Standard servos
  • Built‐in autopilot, flight director and yaw damper controls
  • Yaw control includes coordinated turns
  • Flight Director capability can drive pitch and roll flight director bars together with mode annunciations on compatible displays
  • Lateral and vertical navigation functions including LPV, FMS, GPSS, VOR, LOC, GS
  • Vertical navigation targets set on the bezel or compatible EFIS
  • Heading Hold
  • Altitude Preselect and Hold with Autotrim
  • Vertical Speed Control
  • Indicated Airspeed Control
  • Under Speed and Over Speed Warnings
  • Roll Envelope Exceedance Warning
  • Course Intercept capability
  • Dual Mode – HDG/NAV and HDG/APR
  • Control Wheel Steering
  • GPS Steering (GPSS) Mode
  • Voice Annunciations
  • System can be integrated with approved legacy analog and digital avionics systems
  • And more such as go around mode, take off go around, and half bank turn.

Specifications

Dimensions

• Width: 6.25" (159mm)
• Height: 1.45" (37mm)
• Depth: 9" (229mm)

Weight

• 2.6 lbs (1.18 kg) (DFCS only)

TSOs

• TSO-C198 Automatic Flight Guidance and Control System Equipment (AFGCS)

Hardware

• RTCA DO-160G to meet TSO-C198

Software

• RTCA DO-178C

Certifications (Current)

  • Aviat A-1C-180, & A-1C-200 (serial number 3301 and above)
  • Beechcraft Bonanza 35*, A35*, B35*, C35*, D35*, E35*, F35, G35*, H35, J35, K35, M35, N35, P35, S35, V35, V35A, V35B, 36, A36, A36TC & B36TC
  • Beechcraft Baron/TravelAir 95-55, 95-A55, 95-B55, 95-B55A, 95-B55B, 95-C55, 95-C55A, D55, D55A, E55, E55A, 56TC, A56TC, 58, 58A, 58P, 58PA, 58TC, 58TCA, 95, B95, B95A, D95A, E95
  • Beechcraft King Air 65-90, 65-A90, 65-109-1, 65-A90-4, B90, C90, C90A, C90GT, E90, F90, H90,100, A100, A100A, A100-1, B100, 200, 200C, 200T, A200, A200CT (excluding serial number FE-1 and above), B200, B200C, B200CT, and B200T
  • Beechcraft 1900, 1900C, & 1900C (C-12J)*
  • Cessna 177, 177A, 177B, 177RG & F177RG
  • Cessna 182D through 182T, F182P, F182Q, R182, T182, T182T, TR182, & FR182
  • Cessna 210, 210A, 210B, 210C, 210D, 210E, 210F, T210F, 210G, T210G, 210H, T210H, 210J, T210J, 210K, T210K, 210L, T210L, 210M, T210M, 210N, T210N, 210R, T210R, P210N, & P210R
  • Cessna T303, 310D through 310R, T310P, T310Q, T310R, 320B through F, 335, 340, & 340A
  • Cessna 414, 414A, 421, 421A, 421B, 421C, & 425
  • de Havilland Canada/Viking Air DHC-6-100, DHC-6-200, DHC-6-300
  • Pilatus PC-6/B1-H2*, PC-6/B2-H2*, PC-6/B2-H4*, PC-6/B-H2*, PC-6/C-H2*
  • Piper PA-24-180*, PA-24-250*, PA-24-260*, PA-24-400*
  • Piper PA-31, PA-31-300, PA-31-325, PA-31-350, PA-31P-350, PA-31P, PA-31T, PA-31-T1, PA-31-T2
  • Piper PA-32-260, PA-32-300, PA-32R-300, PA-32RT-300, PA-32RT-300T, PA-32-301, PA-32-301T, PA-32-301FT, PA-32-301XTC, PA-32R-301, & PA-32R-301T
  • Piper PA-46-310P, PA-46-350P, PA-46-500TP, & PA-46R-350T
  • Piper Aerostar PA-60-600, PA-60-601, PA-60-601P, & PA-60-602P
  • Twin Commander 695*, 695A*, 690*, 690A*, 690B*, 690C*, 690D*, 680D*, 680W*, 681*, 500*,500-A*, 500-B*, 500-S*, 500-U*, 560A*, 560E*, & 560F*
