Note: The Stratus A&P bundle includes a wiring harness and can be purchased over the counter for installation by an A&P.

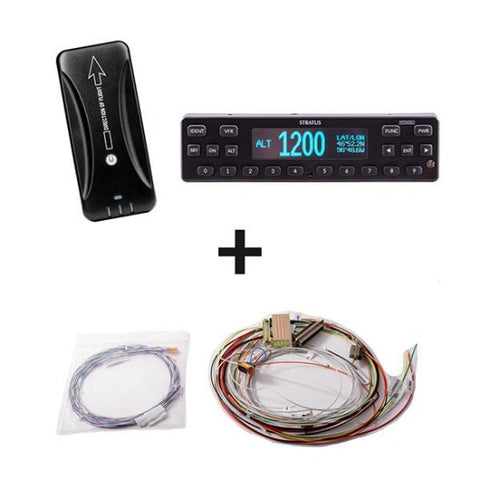

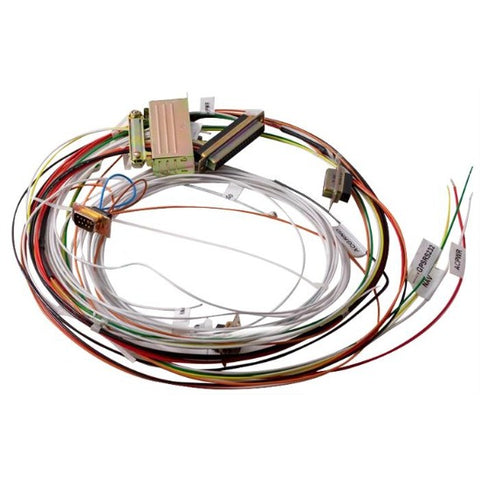

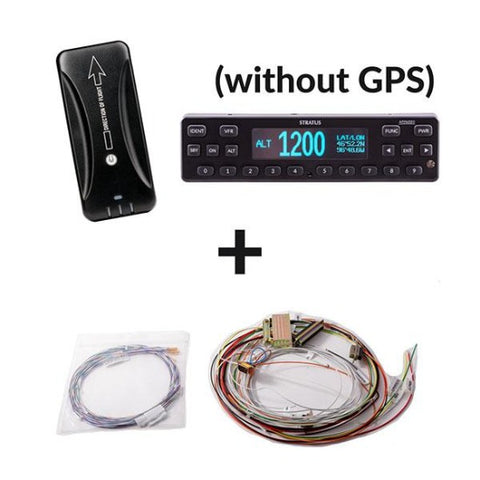

The Stratus A&P bundle includes: Stratus ES Kit, Stratus 3i Kit, and Wiring Harness.

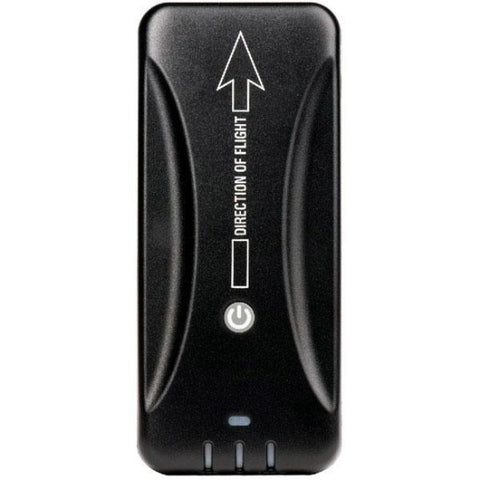

ALREADY HAVE A STRATUS RECEIVER?

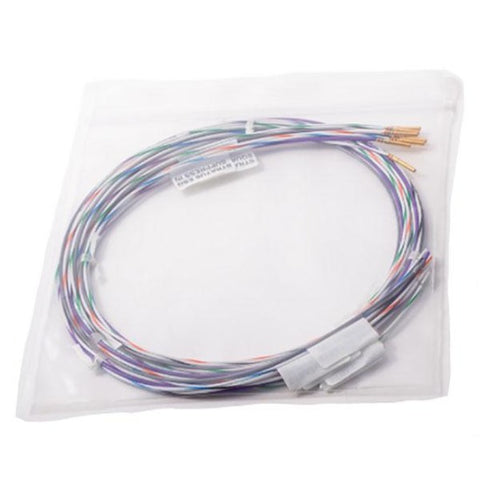

Connect your Stratus with the optional interface kit for maximum reception. Your portable Stratus receives not only auxiliary power, but also its ADS-B and GPS signal from the transponder’s externally-mounted antennas.

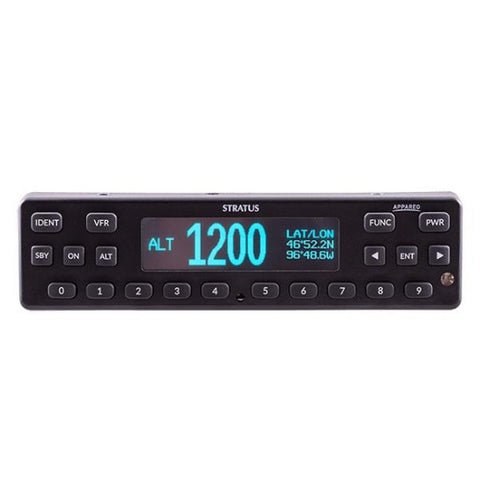

1090ES (Mode S extended squitter)
Built-in WAAS GPS
Meets global mandates for ADS-B Out
Pressure altitude monitor
Bezel Height: 1.69 in. (43 mm)
Bezel Width: 6.38 in. (162 mm)
Depth: 10.75 in. (273 mm) front of panel to connector backshell
Weight: 3.29 lbs. (1.49 kg) including rack and connectors
Operating Temperature: -20°C to 55°C
Storage Temperature: -55°C to 85°C
Power Input: 9.0 to 36.0 VDC, 15 W typical
Cooling Input: No fan required
Environmental Compliance: DO-160G
Software Compliance: DO-178B Level C
Hardware Compliance: DO-254 Level C
Transmitter Power: 310 W
