Stratus A&P Bundle W/ Stratus ESG

Part No:

Shipping calculated at checkout.

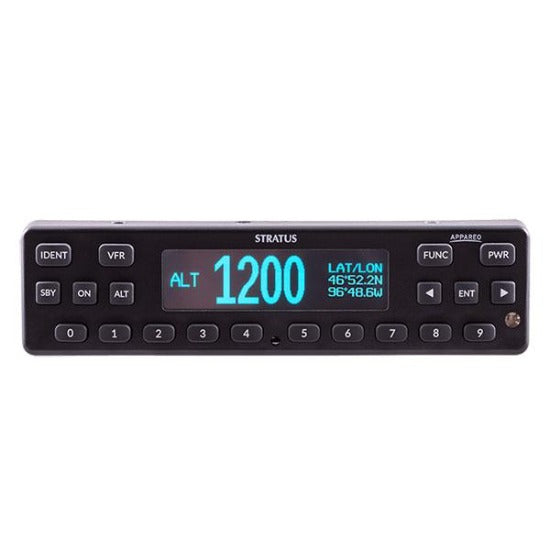

Stratus A&P Bundle W/ Stratus ESG

Note: The Stratus A&P bundle includes a wiring harness and can be purchased over the counter for installation by an A&P.

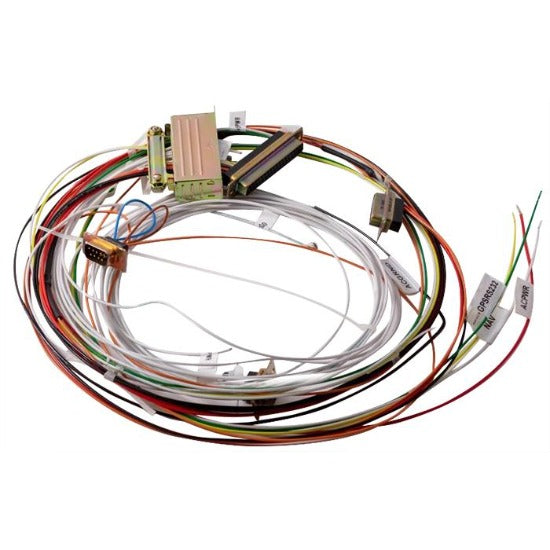

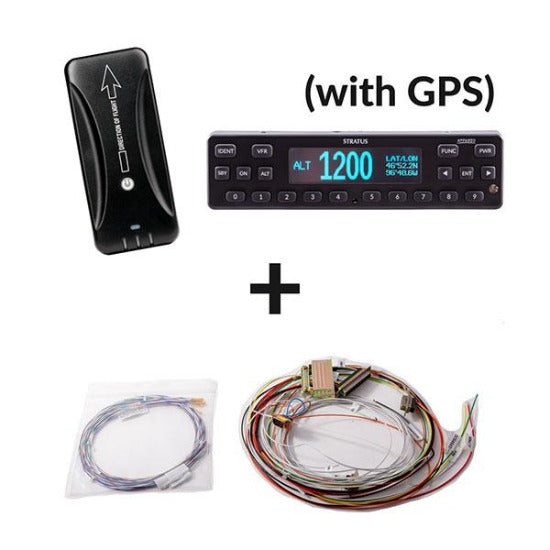

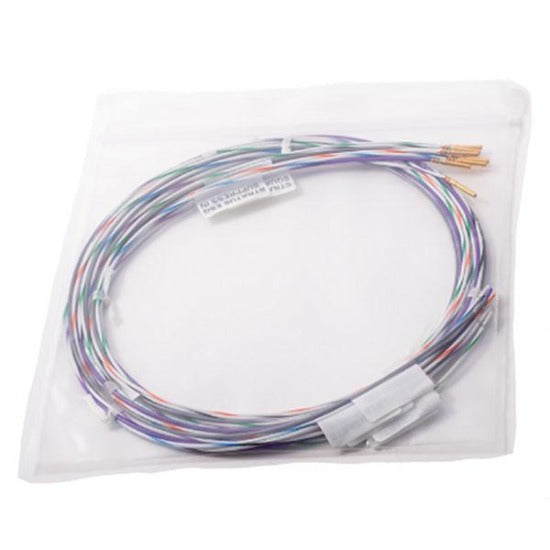

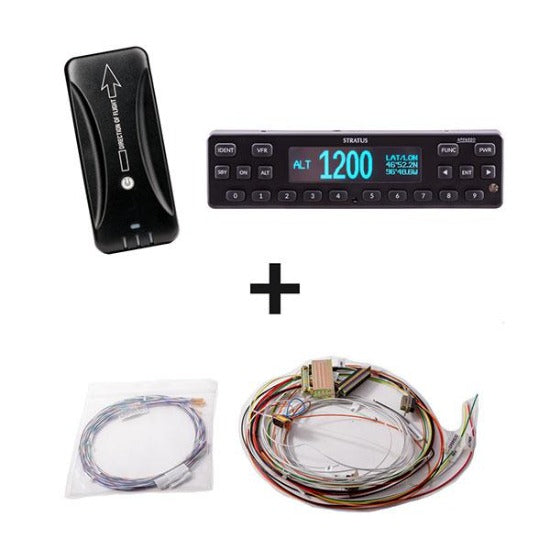

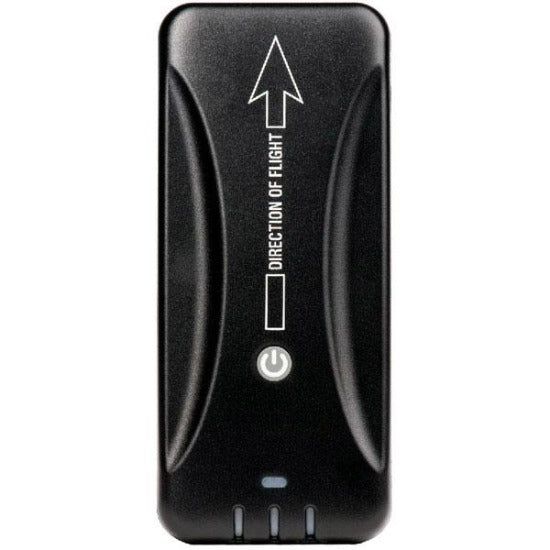

The Stratus A&P bundle includes: Stratus ESG Kit, Stratus 3i Kit, and Wiring Harness.


Connect your Stratus with the optional interface kit for maximum reception. Your portable Stratus receives not only auxiliary power, but also its ADS-B and GPS signal from the transponder’s externally-mounted antennas.

  • 1090ES (Mode S extended squitter)

  • Built-in WAAS GPS

  • Meets global mandates for ADS-B Out

  • Push-button operation

  • Easy-to-use interface

  • Pressure altitude monitor

  • Bezel Height: 1.69 in. (43 mm)

  • Bezel Width: 6.38 in. (162 mm)

  • Depth: 10.75 in. (273 mm) front of panel to connector backshell

  • Weight: 3.29 lbs. (1.49 kg) including rack and connectors

  • Operating Temperature: -20°C to 55°C

  • Storage Temperature: -55°C to 85°C

  • Power Input: 9.0 to 36.0 VDC, 15 W typical

  • Cooling Input: No fan required

  • Environmental Compliance: DO-160G

  • Software Compliance: DO-178B Level C

  • Hardware Compliance: DO-254 Level C

  • Display: OLED

  • Transmitter Power: 310 W
