DYNON AVIONICS

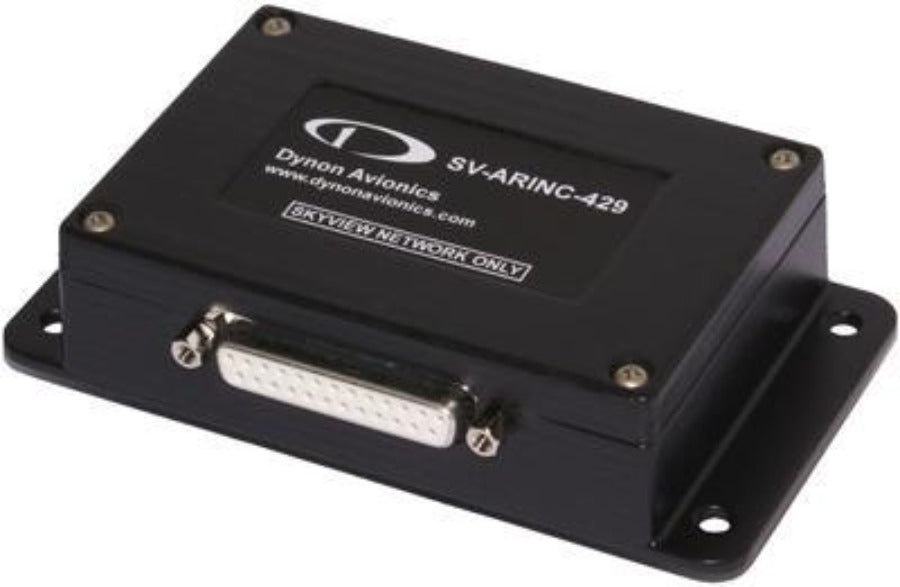

SV-ARINC-429

Part No: 101406-000

$475.00
Shipping calculated at checkout.
DESCRIPTION

Features: The new SkyView SV-ARINC-429 Module delivers on the promise to make SkyView compatible with certified GPS receivers, integrating with radios such as the Garmin 430/530. This includes advanced features that IFR pilots demand, such as GPS steering, CDI auto-scaling and vertical guidance information from WAAS-enabled GPS receivers. This Module also enables the full suite of G430/530 VOR and localizer functionality. With the addition of this module, SkyView eliminates the need to install a conventional CDI/GS head for the Garmin 430/530.

Connections: Provides two ARINC channels in and one ARINC channel out. Two SV-ARINC-429 Modules can be connected into a SkyView System.

Installation: Mounts behind the avionics panel, and connects to the SkyView Network via a standard 9-Pin network connection.

Features

Advanced Screens:
Very bright, high-resolution screens driven by advanced graphic processors create highly visible and readable displays. Screen resolutions are 1024×600 for the SV-D1000 10” and 800×480 for the SV-D700 7”. Brightness is over 1350 nits for the 10” display and 1200 nits for the 7” display. Displays are fully dimmable for night flight. A wiring harness included with each display makes for easy connections between displays and modules.

Integrated User Interface:
Two ten-position control knobs (left, right, up, down, diagonal, push, and rotary) offer easy and intuitive control of your SkyView displays. EFIS, EMS, Autopilot, Moving Map, 3-D Terrain/Synthetic Vision, and menu structures are all available with less than three button presses. Future functionality will include external video display, weather data, traffic, and complete Com radio, Nav radio, and transponder control.

SkyView Network:
Every SkyView system display and module is connected by two independent power and data buses. The failure of any bus connection or module will result in automatic fail-over to a working bus or module.

Total System Battery Backup:
The system battery will provide over an hour of backup power to displays and modules.

Flexible User Interface:
The default screen setups are logical and functional, so you can start flying with a minimum of setup time. But as you determine your preferences and screen layouts, the displayed data can be configured in ways that work best for you.

Engine Module:
The SV-EMS-220 can be mounted closer to the engine, allowing easier wire routing. Note: the SV-EMS-220 cannot be mounted on the engine side of the firewall.

ADAHRS Module:
The SV-ADAHRS-200 is a complete MEMS-based attitude reference and air data computer, integrated with a digital compass. This allows easier mounting and higher accuracy calibration between the system components. One or more SV-ADAHRS-201 Modules can be added to a SkyView System for redundancy.

GPS Receiver:
The SV-GPS-250 connects to the system backup battery for greater reliability. Other NMEA compatible GPS receivers may also be connected to the SkyView system and used in lieu of or redundant to the SV-GPS-250.

Compatibility:
Your existing Dynon engine monitor sensors and harness will work with the new SV-EMS-220 Engine Module. Your existing Dynon Servos will work with the SkyView system, including a redundant network connection. Your existing Dynon pitot probes will also work with the SkyView system.

USB Updates:
Convenient program and data updates via USB memory stick.
