DYNON AVIONICS

SV-COM-X25 Com Radio

Catalog No:

Manufacturer: DYNON AVIONICS

By integrating deeply with your Dynon SkyView system, the SkyView COM Radio tunes frequencies by airport and station type - rather than by spinning in a number - at the touch of a button. You can also send frequencies over from the SkyView map airport info pages. For when you're feeling nostalgic (or are following ATC instructions), a dual concentric knob lets you spin in frequencies "the old fashioned way." SkyView will identify the airport and station type as you tune to help ensure you're talking to the right radio station. Dynon offers two COM radios: the SV-COM-X25 has 25 kHz channel spacing only. The SV-COM-X83 adds 8.33 kHz channel spacing.

Don't Miss a Thing: Dual watch allows you to listen for transmissions on both your active and standby frequencies simultaneously, with the active taking priority at all times. Use dual watch to monitor an alternate frequency in busy airspace or listen to ATIS without missing anything on the active.

Designed for YOUR Panel: The SV-COM-X25 and SV-COM-X83 are available in both horizontal and vertical SV-COM-X25 versions so that you can craft your perfect panel. And, because the Transceiver module is mounted remotely, the control panel is only 1.27” deep.

  • Tune frequencies by airport and station type at the touch of a button
  • Send frequencies directly from SkyView
  • GPS-based reverse lookup of airport and station type for manually entered frequencies

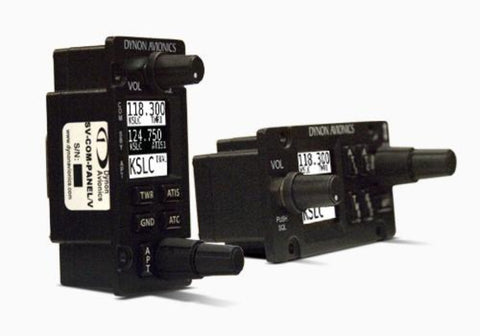

  • Vertical and horizontal versions
  • Monitor your standby frequency with dual watch
  • Fully backlit, auto-dimming controls
  • One-touch flip-flop with remote trigger ability
  • Transmit indicator
  • Receive indicator with active/standby differentiation
  • Stuck mic indicator with transmit time-out

SV-COM-X25

Frequencies: SV-COM-X25: 118.000 to 136.975 MHz, 25 kHz Spacing

Control Panels Dimensions: 3.53" (89.7mm) x 1.80" (45.7mm) x 1.27" (32.4mm), available in vertical and horizontal versions

Transceiver Module Dimensions: 6.3” (160mm)L x 2.5” (66mm)W x 1.9” (48mm)H

Weights: SV-COM-PANEL Control Panel: 5.6 oz (159 g)

               SV-COM-X25 Transceiver Module: 0.77lbs (350 g)

Power Input: 10-30 VDC

Transmit Power: 6 Watts

Antenna Connection: TNC
