DYNON AVIONICS

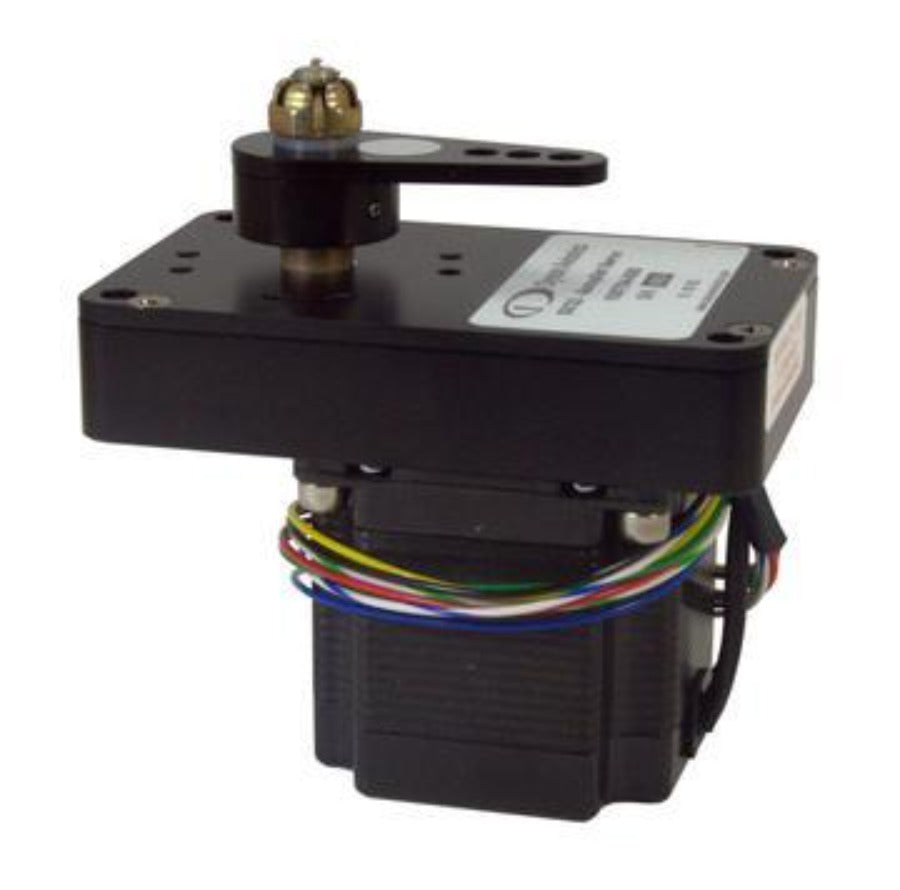

SV32 (standard output arm)

Part No: 100854-000

$850.00
Shipping calculated at checkout.
DESCRIPTION

SV32 (standard output arm)

  • Includes SV32, Limiting Bracket Kit
  •

    We have recommendations for which strength of servo to use based on what aircraft you are installing it in, to see that list Click Here

    (Includes limiting Bracket Kit: 101025-000)
    Features

    FEATURES: Every Dynon autopilot can fly magnetic heading, GPS ground track, and horizontal NAV from any connected compatible radio* or GPS. In addition to being able to hold altitude, the autopilot can fly to a new altitude and level off once it arrives. Additional standard features include emergency 180-degree turn capability, control wheel steering, and standard trim sensing and annunciation on all servos used on the pitch axis. And because Dynon’s autopilot is built on its best-selling EFIS systems, it can respect bank angle, airspeed, and G limitations too.

    • * HDG, TRK, Horizontal NAV (GPS and Radio*)
    • * ALT hold and change
    • * Adjustable vertical speed while changing altitude (new for SkyView!)
    • * Control Wheel Steering
    • * ALT, TRK, HDG, VS pre-select
    • * Horizontal GPS Steering (ARINC-429)
    • * Vertical GPS steering
    • * Vertical NAV (radio or GPS)

    CONNECTIONS: The seven Servo wires are for:

    • 4 - Sets of Twisted Wire SkyView Network Connection
    • 1 - Power connection
    • 1 - Ground connection
    • 1 - Quick Disconnect, to be connected to a switch on the control wheel or stick

    SV-NET-SERVO: This kit helps wire the autopilot servos. It includes 20" of Tefzel wires: two pairs of twisted 22 gauge network wires, one 22 gauge quick disconnect wire, and two 20 gauge wires for power and ground. Also included are three D9 connectors (one male, two females), 18 pins, a pin insertion tool, shrink tubing, and tie wraps. One kit is required for each servo. A crimping tool is required (not sold by Dynon) to attach the pins to the wires.
