ELECTRONICS INTERNATIONAL
DESCRIPTION

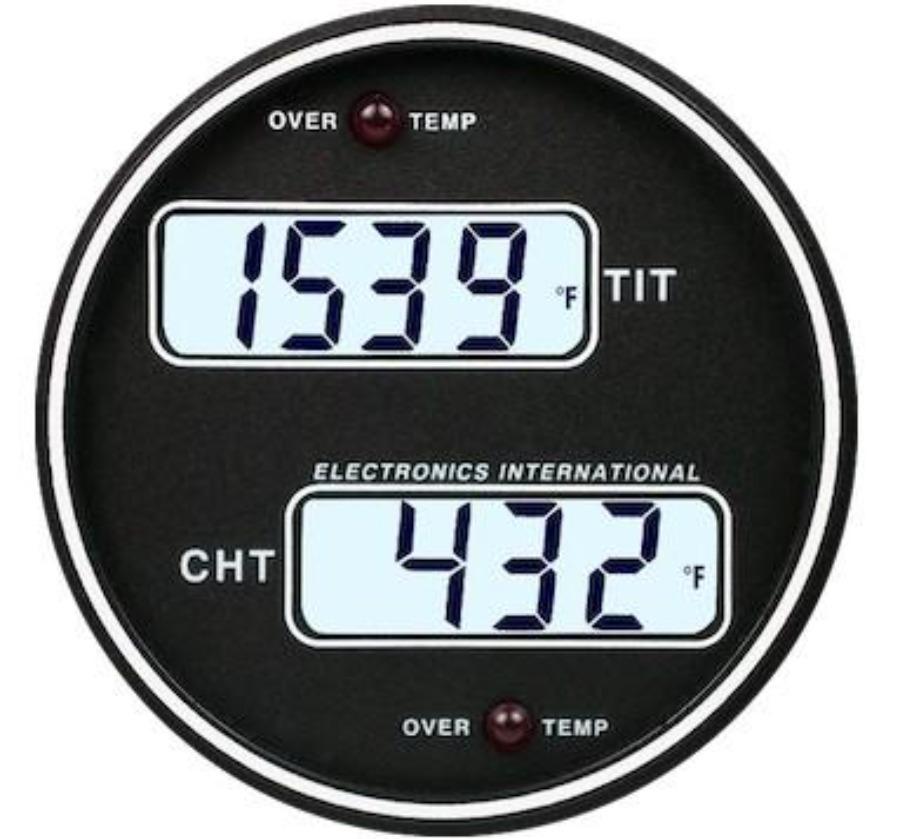

TC-1P Dual Channel TIT
| TC-1P: Dual Channel TIT and Primary CHT Kit with Over-Temp Lights, 3 1/8" Mount, 2.5" Depth, 28 Oz. Kit, STC'd, TSO'd, PMA'd, 1 Degree Resolution, Accurate within 1/2%, Viewable in direct sunlight, Backlit, Operates from 7.5 to 35 volts at .1 amp. |
Don’t Need Your Glasses To Read
- Large digital backlit display.
Interpret Your Readings Faster
- The digital display allows for quick trend analysis.
Budget Friendly
- Same precision found in the most advanced analyzers on the market, but won’t break the bank.
Accurate, Dependable & Easy To Use
- LCD sunlight viewable and backlit for night operation.
- Electronics International consistently has been a leader in digital engine instrumentation since 1979.
Features
Included in the package:
- TC-1P Instrument
- Wire Harness
- P-100 CHT Probe
- (P-110R, P-111, P-112 or P-114)
- Installation/Operating Instructions
- STC/AML
Specifications
Dimensions
2.50” Deep, 3 1/8” Flush Mount
Weight
7 oz (Instrument Only)
Power Requirements
7.5 to 35 Volts, Typical: 0.1 amps @ 12 Volts
Display
Viewable in direct and indirect sunlight.
Backlight
Fully backlit and dimmable for night flights.
Certifications
FAA TSO’d, STC’d
