TT22 Mode S Transponder
Part No: 00772-00
TT21 AND TT22 TRANSPONDERS
Chosen by pilots around the world Trig’s compact transponders are the best choice for good reason.
Fitting in the tightest panel space the innovative design saves weight and space. Trig is ‘better by design, with Mode S technology that makes you visible to commercial, military and GA traffic, as a result transiting busy airspace becomes more predictable and stress free. Trig transponders are future proof too – the growing use of ADS-B further enhances your visibility and flight safety. Unlike other brands Trig transponders meet the very latest certification standard for ADS-B, FAA TSO-C166b.
Designed to be easier to use, with a clear bright display the controller even comes with a built in altitude encoder! Join other pilots who have made Trig their compact transponder of choice – you’ll be in great company.

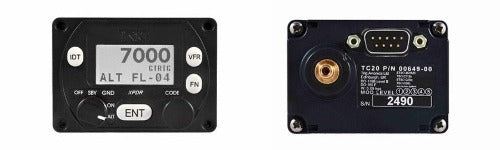

The TT22 is a two part transponder with a compact control head; this includes an inbuilt altitude encoder - saving further space and expense. A separate hardware box can be installed anywhere in the airframe. The mounted control head is only 54mm (2 3/25”) deep and can be fitted in panel using a 57mm (2 ¼”) round hole or smaller compact mount, the unit ships with the necessary fittings for both install options. The TT22 unit is highly efficient and is ideal for use via an auxiliary battery in gliding or lighter than air flight.

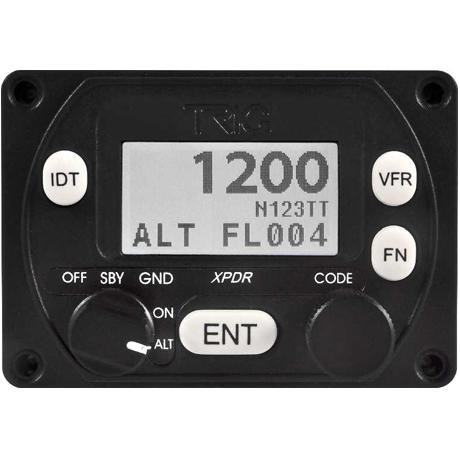

The TT22 transponder is easy to operate and with a crisp, bright display it is also easy to read in all lighting conditions. The higher powered TT22 can be used in IFR and VFR flight in high performance aircraft, over 175 knots and/or above 15,000 feet. The transponder control head is splash proof too so it’s ideal for open cockpit and seaplane operations.
Mode A and C transponders are now being replaced by Mode S technology which is optimised for tomorrow’s airspace requirements. Despite its modest size the TT22 is a heavyweight performer, at 250 watts nominal power output this class 1 transponder meets the latest FAA TSO C166b standards for ADS-B Out.
Trig were the first company in the world to offer a ‘mandate ready’ certified 1090ES ADS-B Out compliant solution. The TT22 is popular in the U.S. where a certified WAAS GPS, and a ground air determination device are also required forming the ideal 2020 ADS-B solution. It’s worth remembering that to receive all ADS-B In transmissions in the U.S. the FAA requires a functioning certified ADS-B Out device, so don’t miss out on airspace information - fit a Trig TT22.
All Trig products come with a two year warranty, supported by our global network of Approved Trig Dealers and Approved Trig Service Centers in the U.S. and Australia.
- Smallest & lightest Class 1 Mode S general aviation transponder
- Remote Mount 2 Part System: consisting of panel controller & transponder box
- Based on the design & technology of the TT21 Mode S Transponder, with higher transmitted output power
- Designed for High Performance Aircraft
- 250 Watts Nominal Output
- Class 1 Transponder is suitable for aircraft cruising faster than 175 knots, and above 15,000 feet, VFR or IFR
- Total weight just over 1 lb
- Minimal Panel Space, can be installed in standard 2¼" or 45mm cut-out
- Simple Installation
- Control includes an integrated altitude encoder
- Controller acts as a configuration module for the system - easily swap transponder box without reprogramming
- Fully certified and compliant with all transponder requirements TSO approved for European & FAA registered aircraft
- Supports 1090 MHz Automatic Dependent Surveillance Broadcast (ADS-B out)
Trig’s compact transponder is in two parts with a compact control head; this includes an inbuilt altitude encoder – saving further space and expense. A separate hardware box can be installed anywhere in the airframe. The mounted control head is only 54mm (2 3/25”) deep and can be fitted in panel using a 57mm (2 ¼”) round hole or smaller compact mount – the unit ships with the necessary fittings for both install options. Our compact transponders are highly efficient, whilst used in a wide range of GA types they are ideally suited for use in gliders and balloons, via an auxiliary battery.
Trig’s compact transponders are easy to operate and have a crisp, bright display that’s easy to read in all lighting conditions and is equipped with manual dimming. The transponder control head is splash proof too, so it’s ideal for open cockpit and seaplane operations.
POWER OUTPUT AND ADS-B
Trig’s TT21 has a 130 watts nominal power output, making it a class 2 transponder that meets international standards for 1090ES ADS-B Out (TSO C166b). The TT21 is ideal for use in flight where a light weight Mode S solution is required and is suitable for both IFR and VFR use.
COMPATIBLE TRIG PRODUCTS
ADS-B enhances safety and visibility – your investment in a TT22 transponder is future proof. Trig has a matching certified GPS position source that is highly affordable called the TN72. This is ideal for ADS-B voluntary equipage and the TN72 can even be used to meet the 2020 mandate by light-sport, experimental and homebuilt types in the U.S.
Our TN70 GPS position source is suitable for certified Part 23 aircraft that need a TSO-C145 position source, for operations in 2020 rule ADS-B airspace using a TT22 transponder.
Customers in the U.S. should be aware that FAA, Federal Aviation Regulations (FAR) 91.227 requires that a compliant ADS-B Out solution uses a Class 1 transponder. The TT22 is a Class 1 device and meets this requirement. The TT21 is a Class 2 device and does not meet this regulation.
|Transponder Class 2 Mode S level 2els ADS-B Class B0
|Transponder Class 1 Mode S level 2els
ADS-B Class B1S
|ETSO C88A, C112C, C166A
TSO C88b, C112c, C166b, approved for IFR and VFR flight
|ED-73C, DO-160F, DO-178B Level B, DO-254
Level C, DO-260B, DO-181D
|Supply voltage (DC)
|Typical consumption (at 14v)
|idle: 0.15 A active: 0.28 A
|idle: 0.15A active: 0.34 A
|Nominal Transmitter Power
|130 W at connector
|250 W at connector
|for the transponder -40°C to +70°C
for the controller -25°C to +70°C
|no fan required
|Weight (hardware back box)
|440g / 0.8 lbs
|Weight (TC20 control head)
|90g / 0.11 lbs
|controller: H 44 x W 63 x L 54 mm
transponder in tray: H 48 x W 68 x L 160 mm
|controller: H 1.8 x W 2.4 x L 2.1 inches
transponder in tray: H 1.8 x W 2.6 x L 6.2 inches
