TRIG

TY91

Part No: 01079-00

$1,671.00
Shipping calculated at checkout.
DESCRIPTION

TY91 VHF RADIOS

Trig’s compact radio is the ideal retro-fit that can be installed in the smallest panel. The TY91 is certified and highly capable. Easy to use and faster to tune, it takes up minimal space and weight. The unique ‘Push Step’ feature provides the fastest in class frequency selection. Dual Watch allows you to monitor two channels at the same time – it’s like having two radios in one. Compatibility with various EFIS systems enables remote control of the TY91 radio – it can even populate the on-route frequency from a connected GPS. A memory function provides fast frequency selection for your most used frequencies. A built-in intercom with mic gain adjustment on each headset ensures great performance, even when headsets brands don’t match.

The TY91 is the perfect comms partner to our TT21 and TT22 Mode S (1090 ES ADS-B Out transponders).

The TY91 is TSO approved for fitting to European and FAA registered aircraft.

When using a Trig radio in a glider fitted with a European dynamic boom microphone an amplified adaptor will be required.

TRIG TY91 Installation

Pacific Coast Avionics designs custom panels and has been installing avionics for decades. For more information and panel, suggestions check our installations page!

Questions? Contact our experts or call toll free at 800-353-0370

Contact your nearest Approved Trig Dealer now and benefit from our smart, affordable and future proof avionics.

Features
  • Compact size, low weight – takes minimal panel space, only 74mm deep
  • Unique ‘Push Step’ feature provides the ‘fastest in class’ frequency selection
  • Dual watch – monitor two frequencies at the same time
  • Manual dimming feature (adjustable backlight)
  • Dual Control – two controller option for tandem cockpits
  • Simple Installation
  • Free European Minor Change approvals

PRODUCT FEATURES

With a crisp clear display and simple user interface the Trig radio benefits from some great features; ‘Dual Watch’ feature allows monitoring of two frequencies at the same time. There are 9 pre-set channel memories which are easily selectable.

Trig’s compact radio is EASA ETSO and FAA TSO approved so it can be used worldwide. Our ‘Push Step’ feature enables the fastest tuning  in its class – three times faster than in an 8.33 environment! For customers who do not require 8.33 channel spacing this feature can be disabled, allowing speedy selection between 50 kHz and 25 kHz spacing. This enables rapid change of frequency whilst providing fine tuning in 25 kHz steps if required.

Trig radios also feature a built-in high quality two place intercom with an aux-input, saving further cost and weight.

GPS COMPATIBILITY

The radio can integrate with popular GPS units; this allows the automatic display of en-route radio frequencies. Control of the radio via an EFIS display is also possible using industry standard SL40 and GTR225 protocols. This unique capability integrates your Trig radio with other avionics and provides real user flexibility.

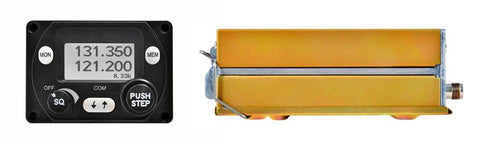

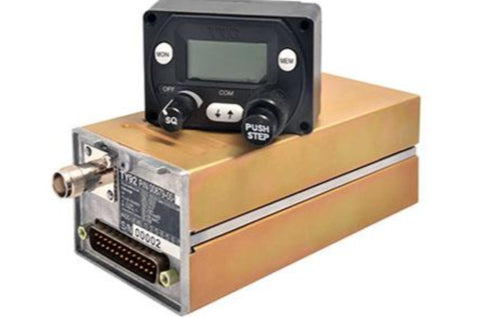

PRODUCT DESIGN

The innovative use of a control head and separate radio hardware unit provides more installation options, especially when space is at a premium. The control head can be conveniently mounted in a full 57mm (2 ¼”) round hole or even smaller compact mount. Fitting is straightforward, and once installed the depth of the radio control head is only 74mm (3”). In practice this means that the Trig compact control head can be located in an aircraft instrument panel where a ‘single box’ radio will simply not fit. The compact radio is the perfect comms partner to our compact transponder Mode S (1090 ES ADS-B Out transponders).

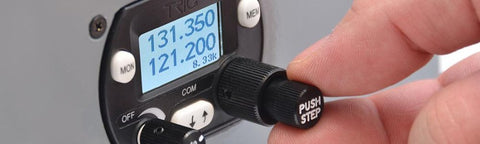

PUSH STEP

The compact radio display is clear and bright, showing both primary and secondary frequencies. A ‘Push Step’ knob allows the fastest change from 8.33 kHz to 25 kHz – so you can tune the radio quickly without compromising your look-out. The Dual Watch feature allows two frequencies to be monitored at the same time – it’s like having two radios in one.

HEADSETS

The Trig compact radio two place intercom is optimised for use with standard aviation headsets – a number of adjustments allow the radio to be used successfully in noisy aircraft.  The compact radio also has a built in speaker amplifier that can drive an external speaker, this is preferred by some glider pilots. If using a dynamic microphone with a Trig radio please note an amplified adaptor will be required.

TT21 and TY91 installed in compact mount fitting

Specifications
Specification TY91 Radio TY92 Radio
Type Receiver – Class
C, Class E. Transmitter – Class 4, Class 6
Receiver – Class C,
Class E. Transmitter – Class 3, Class 5
Certification ETSO-2C169a, ETSO-2C128,
TSO-C169a, TSO-C128a
Compliance ED-23C, ED-67, DO-186B, DO-178B
Level B, DO-160F, DO-254 Level C
Supply voltage (DC) 11 – 33 V 22 – 33 V
Typical current consumption (at 14v) (at 14V) receive: 200 mA transmit: 2A (at 28V) receive: 130 mA transmit: 2.5A
Nominal Transmitter Power 6 Watt  16 Watt
Operating temperature for the radio unit -40 °C to + 70 °C
for the controller -20 °C to +70 °C
Cooling requirement No fan required
Weight 460 grams / 1.01 lbs
Dimensions (mm) controller: H 44 x W 63 x D 35 mm (74 mm depth in panel with D-Type connector fitted).
radio unit: H 48 x W 66 x L 160 mm (inc. socket).
Dimensions (inches) controller: H 1.73 x W 2.48 x D 1.37 inches (Depth 3 inches with D-Type connector fitted).
radio unit: H 1.88 x W 2.59 x L 6.29 inches (inc. socket)
