ELECTRONICS INTERNATIONAL
DESCRIPTION

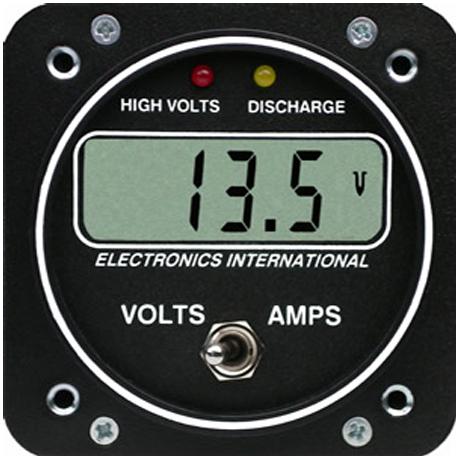

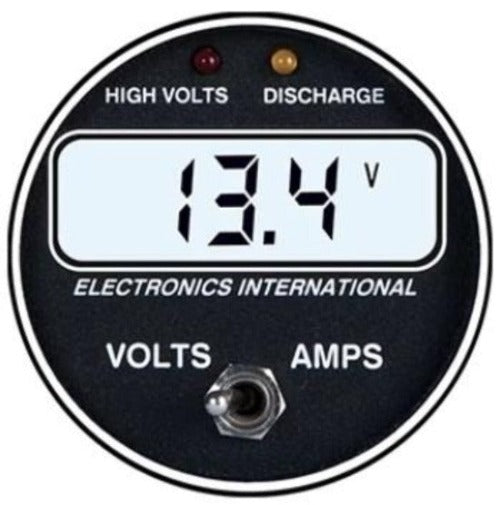

VA 1a Volts/Amps Display
The VA-1A Volts/Amps Display is a Primary Replacement Volt/Amp Instrument with Internal Shunt
These Digital/Graphic Instruments are solid state and hold their accuracy over time and a range of environmental conditions. The colorful Graphic Analog display emits green, yellow, or red light enabling the pilot to spot problems immediately without interpreting a needle. The Digital display constantly provides an exact indication of each instrument function. Gauges mount in 2-1/4" instrument holes. These instruments (except fuel level) are STCd & TSOd for certificated aircraft.
VA-1A VOLTS/AMPS INTERNAL AND EXTERNAL SHUNTS
The VA-1A is a FAA/PMA approved instrument which features a discharge warning light to act as an early warning device alerting you as soon as discharging begins. This is critical in giving the pilot as much time as possible to reduce electrical load and extend the life of the battery in flight. Also, by monitoring load currents to .1 amps the pilot can check important aircraft functions such as retracts, boost pumps, transmitter power, pilot heat, navigation lights, transponder, strobes, and any other electrical equipment. The VA-1 can replace your existing amp gauge. It is backlit for night operation and operates on 12 or 24 volt systems. Available with internal or external shunt. Wt. 9 Oz.
Volts/Amps Display Features:

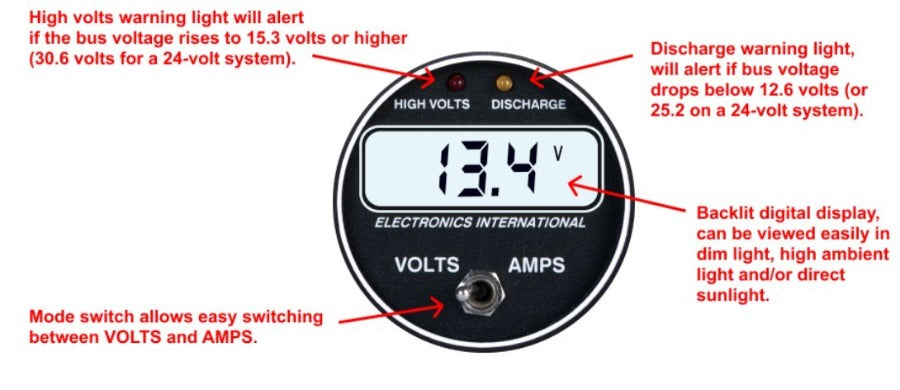

- Discharge and High Voltage Warning Lights
- 100 amp capability
- .1 volt and .1 amp Resolution
- Accuracy: 1%. 2 1/4"
- LCD display for excellent viewing in direct sunlight
- LCD is backlit for night operation
- Operates from 7.5 to 40 volts at .1 amps.
- Mounts in a standard 2 1/4" Hole. 3.65" depth
Features
- Discharge and High Voltage Warning Lights
- 100 amp capability
- .1 volt and .1 amp Resolution
- Accuracy: 1%. 2 1/4"
- LCD display for excellent viewing in direct sunlight
- LCD is backlit for night operation
- Operates from 7.5 to 40 volts at .1 amps.
- Mounts in a standard 2 1/4" Hole. 3.65" depth
Included with all packages:

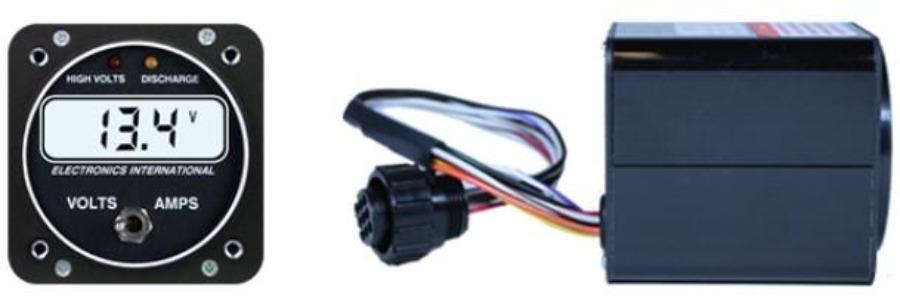

- VA-1A Instrument
- Wire Harness
- Installation and Operating Instructions
- STC & AML
Specifications
Dimensions
Instrument: 2.50” x 2.50” x 3.65” Deep, 2 1/4” Flush Mount
Weight
11 oz (Instrument only)
Power Requirements
7.5 to 40 Volts, Typical: 0.3 amps @ 12 Volts
Display
Backlit LCD, viewable in Direct and Indirect Sunlight
Certifications
FAA STC’d, PMA’d
