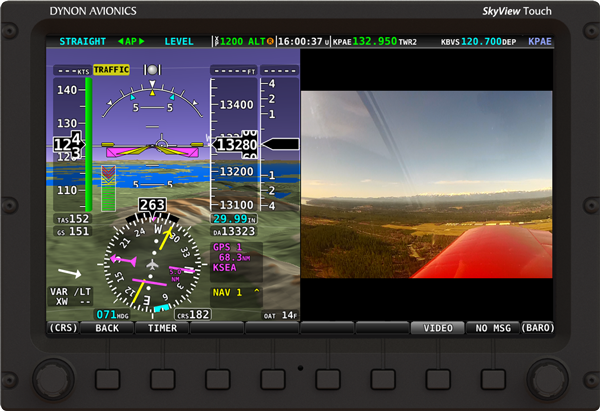

With SkyView 11 Software, all SkyView Touch and new SkyView screens can display video in both full-scree and split-screen formats when equipped with a Video Input Adapter. Video sources connect via s-video or composite input. Both NTSC and PAL formats are supported for worldwide compatibility.
Video input capabilities are an important feature for many tail dragger and glider towing aircraft. The SkyView Video Input Adapter plugs directly into a SkyView USB port. This new feature allows you to display any S-Video or Composite video source on your SkyView display in full screen or half screen modes.

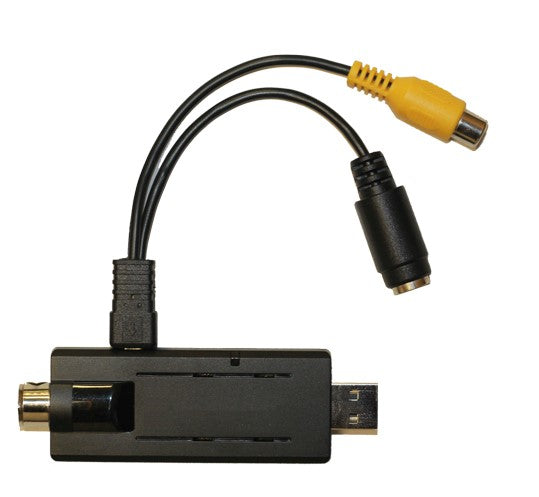

Connections Video sources connect via s-video or composite input with the Video Input Adapter (part number 102211-000). Both NTSC and PAL formats are supported for worldwide compatibility. The SkyView Video Input Adapter must be plugged in before the display is turned on and remain plugged in for the full flight to view video on the connected display. In a multiple display system, one Adapter must be used per display; they do not share the video over the network. Dynon Avionics does not supply cameras or other video sources, or cabling associated with video devices. The video device will require power that is not supplied or controlled by SkyView.
Important Note: The Video Input Adapter is only compatible with SkyView HDX displays, SkyView SV-D1000T Touch displays, SV-D1000 displays serial number 6000 and higher, and SV-D700 displays serial number 4000 and higher.
Requires SkyView version 11.0 or higher, which is available, as a FREE upgrade for existing SkyView customers.
Requires SkyView version 11.0 or higher, which is available, as a FREE upgrade for existing SkyView customers.
| Weight | .5 lbs |
|---|
